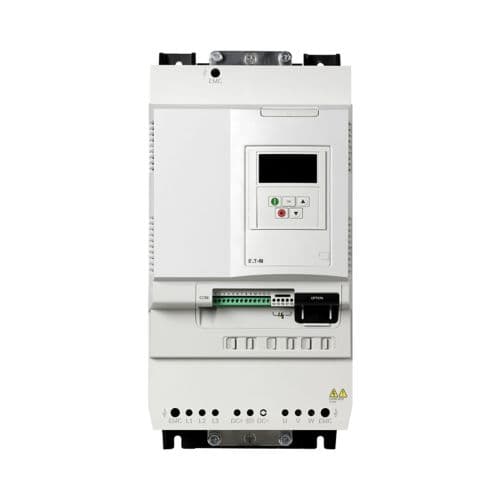

Eaton DA1 Variable frequency drive

Eaton

Eaton DA1 Variable frequency drive

رقم القطعة: 197491

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DA1 Variable frequency drive

المواصفات

Product NameEaton DA1 Variable frequency drive
Catalog Number197491
Model CodeDA1-32072FB-B20C
EAN4015081940660
Product Length/Depth261 mm
Product Height485 mm
Product Width234 mm
Product Weight18.2 kg
CertificationsCE EAC IEC/EN 61800-3 UL report applies to both US and Canada IEC/EN61800-3 UkrSEPRO CUL RCM IEC/EN 61800-2 UL File No.: E172143 UL Certified by UL for use in Canada Safety: EN 61800-5-1: 2003 RoHS, ISO 9001 IEC/EN61800-5 UL 508C UL Category Control No.: NMMS, NMMS7
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.197491.html
Catalog NotesThe brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Apparent power at 230 V28.68 kVA
Apparent power at 240 V29.93 kVA
