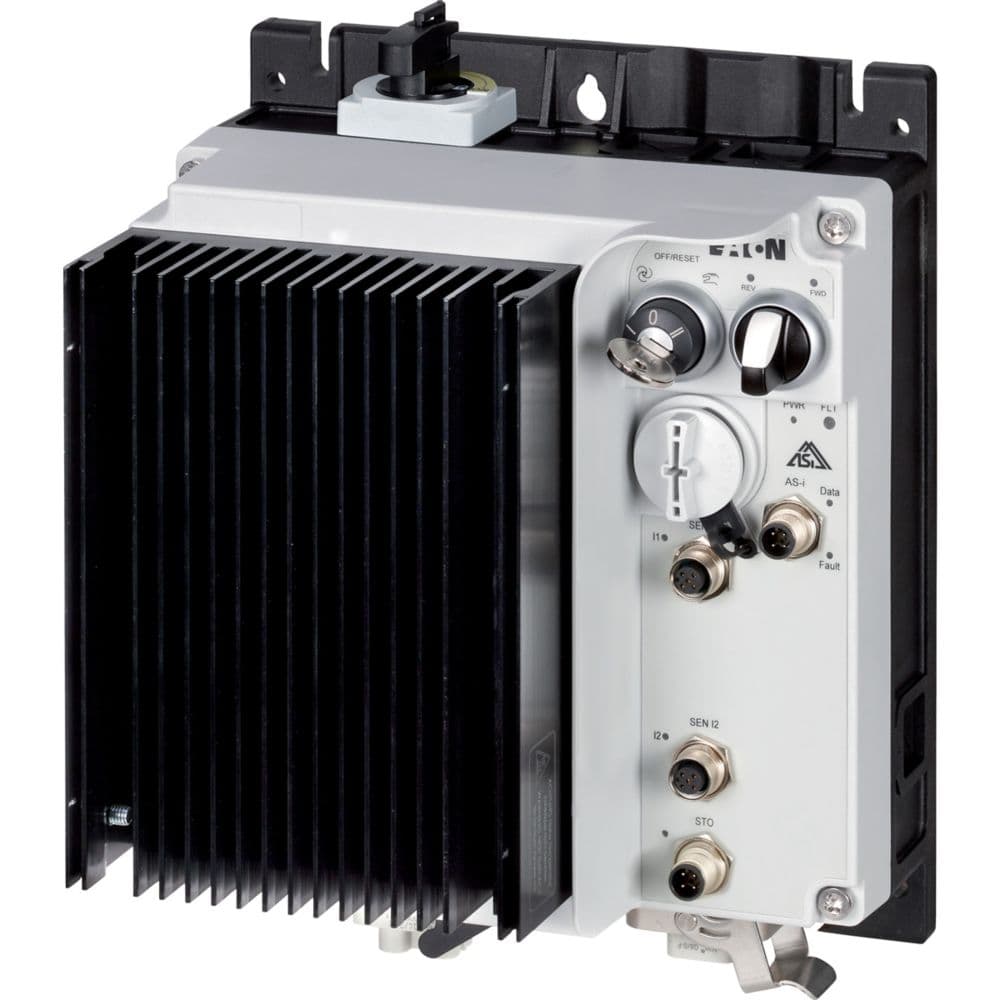

Eaton Rapid Link Speed controller

Eaton

Eaton Rapid Link Speed controller

رقم القطعة: 198828

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Rapid Link Speed controller

المواصفات

Product NameEaton Rapid Link Speed controller
Catalog Number198828
Model CodeRASP5-5400A31-412R110S1
EAN4015081968862
Product Length/Depth157 mm
Product Height270 mm
Product Width220 mm
Product Weight3.6 kg
CertificationsUL approval CE RoHS UL 61800-5-1 IEC/EN 61800-5-1
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.198828.html
Catalog Notes3 fixed speeds and 1 potentiometer speedcan be switched over from U/f to (vector) speed controlConnection of supply voltage via adapter cable on round or flexible busbar junctionDiagnostics and reset on device and via AS-Interfaceintegrated PTC thermistor monitoring and Thermoclick with safe isolationoptional: 4 sensor inputs with M12-Y adapter for switchover to creep speedoptional: Faster stop if external 24 V failsTwo sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operationwith AUTO - OFF/RESET - HAND key switcheswith selector switch REV - OFF - FWD
Mounting positionVertical
Shock resistance15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft
VibrationResistance: 10 - 150 Hz, Oscillation frequency Resistance: According to IEC/EN 60068-2-6 Resistance: 6 Hz, Amplitude 0.15 mm Resistance: 57 Hz, Amplitude transition frequency on acceleration
