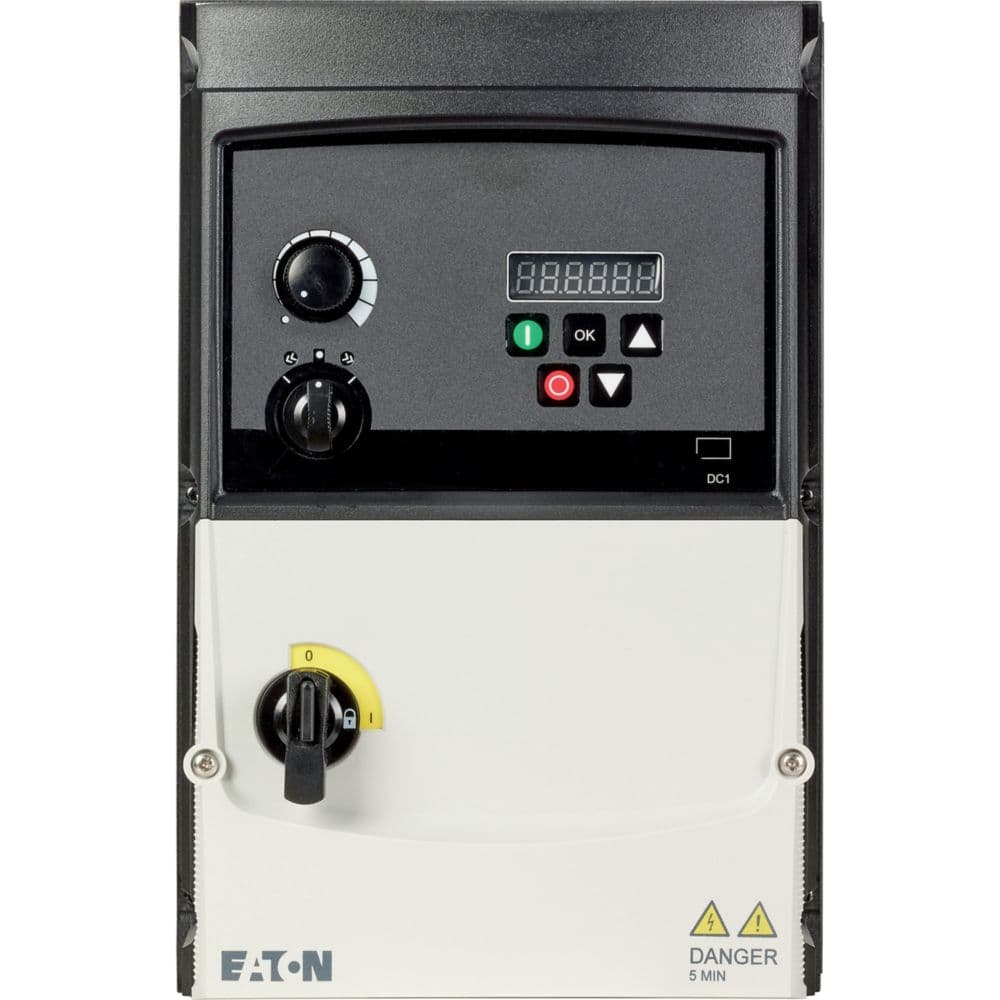

Eaton DC1 Variable frequency drive

Eaton

Eaton DC1 Variable frequency drive

رقم القطعة: 199410

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DC1 Variable frequency drive

المواصفات

Product NameEaton DC1 Variable frequency drive
Catalog Number199410
Model CodeDC1-12015FB-A6SOE1
EAN4015081977994
Product Length/Depth238 mm
Product Height310 mm
Product Width210.5 mm
Product Weight7 kg
CertificationsCUL UL Listed UL File No.: E172143 CE IEC/EN 61800-2 IEC/EN 61800-3 UL report applies to both US and Canada Certified by UL for use in Canada RoHS, ISO 9001 UL UL 508C CSA-C22.2 No. 14 EAC CE marking UkrSEPRO UL Category Control No.: NMMS, NMMS7 RCM IEC/EN61800-5 IEC/EN 61800-5-1
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.199410.html
Catalog NotesEnvironmental class: 3C3, 3S3Overload cycle for 60 s every 600 sFor normal internally and externally ventilated four-pole three-phase asynchronous motors with 1500 rpm at 50 Hz and 1800 rpm at 60 Hz
Apparent power at 230 V5.98 kVA
Apparent power at 240 V6.24 kVA
