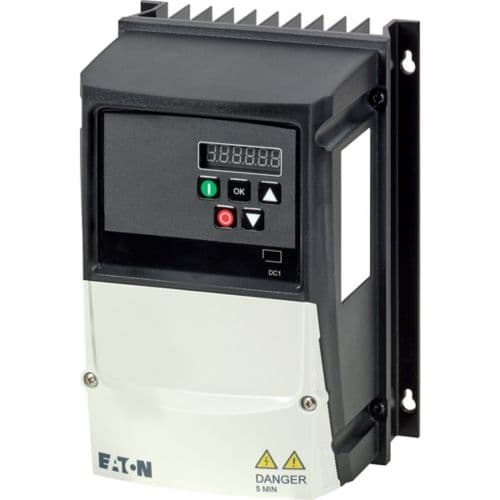

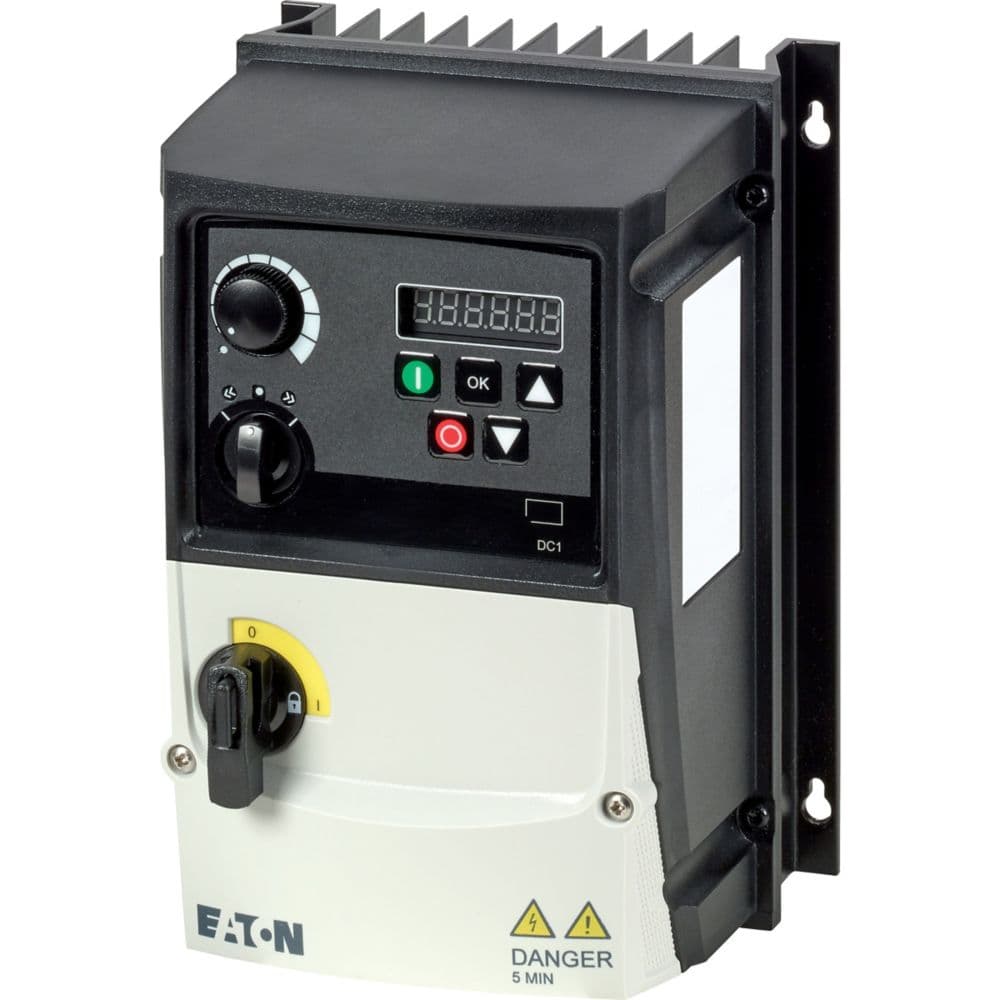

Eaton DC1 Variable frequency drive

Eaton

Eaton DC1 Variable frequency drive

رقم القطعة: 199416

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DC1 Variable frequency drive

المواصفات

Product NameEaton DC1 Variable frequency drive
Catalog Number199416
Model CodeDC1-327D0FN-A6SOE1
EAN4015081978052
Product Length/Depth162 mm
Product Height232 mm
Product Width161 mm
Product Weight2.5 kg
CertificationsCUL RCM UL EAC UL File No.: E172143 Certified by UL for use in Canada CE UkrSEPRO IEC/EN61800-5 UL 508C CE marking IEC/EN 61800-3 UL report applies to both US and Canada IEC/EN 61800-2 CSA-C22.2 No. 14 UL Listed IEC/EN 61800-5-1 RoHS, ISO 9001 UL Category Control No.: NMMS, NMMS7
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.199416.html
Catalog NotesEnvironmental class: 3C3, 3S3Overload cycle for 60 s every 600 sFor normal internally and externally ventilated four-pole three-phase asynchronous motors with 1500 rpm at 50 Hz and 1800 rpm at 60 Hz
Apparent power at 230 V2.79 kVA
Apparent power at 240 V2.91 kVA
