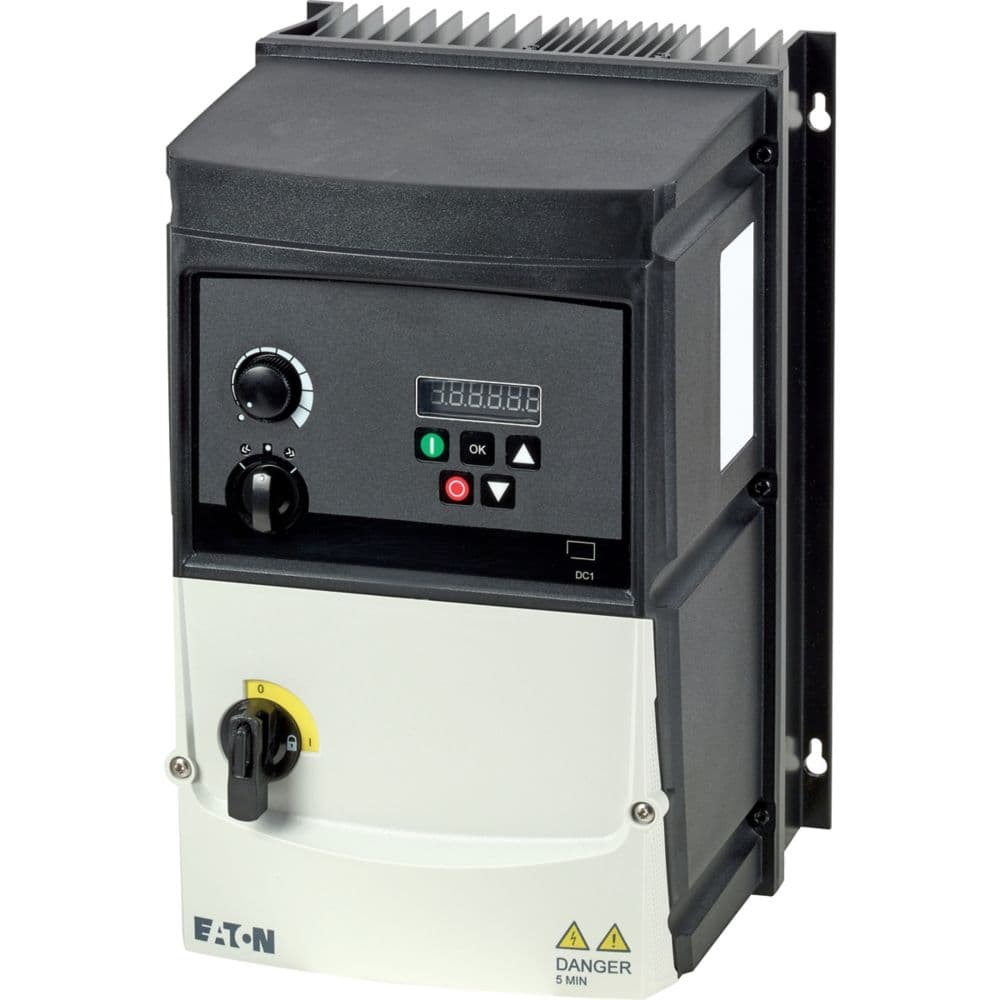

Eaton DC1 Variable frequency drive

Eaton

Eaton DC1 Variable frequency drive

رقم القطعة: 199422

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DC1 Variable frequency drive

المواصفات

Product NameEaton DC1 Variable frequency drive
Catalog Number199422
Model CodeDC1-32018FB-A6SOE1
EAN4015081978113
Product Length/Depth238 mm
Product Height310 mm
Product Width210.5 mm
Product Weight7 kg
CertificationsRCM UkrSEPRO Certified by UL for use in Canada CUL RoHS, ISO 9001 CE marking UL Listed IEC/EN 61800-2 CE UL report applies to both US and Canada UL 508C UL Category Control No.: NMMS, NMMS7 IEC/EN 61800-3 CSA-C22.2 No. 14 IEC/EN61800-5 UL EAC UL File No.: E172143 IEC/EN 61800-5-1
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.199422.html
Catalog NotesEnvironmental class: 3C3, 3S3Overload cycle for 60 s every 600 sFor normal internally and externally ventilated four-pole three-phase asynchronous motors with 1500 rpm at 50 Hz and 1800 rpm at 60 Hz
Apparent power at 230 V7.17 kVA
Apparent power at 240 V7.48 kVA
