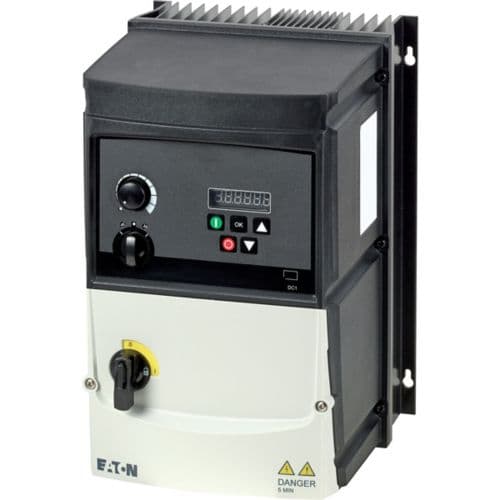

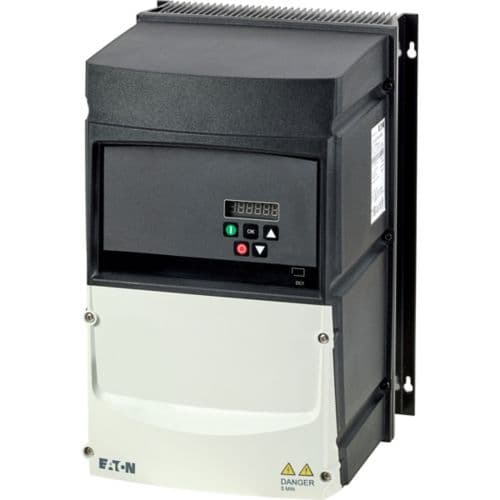

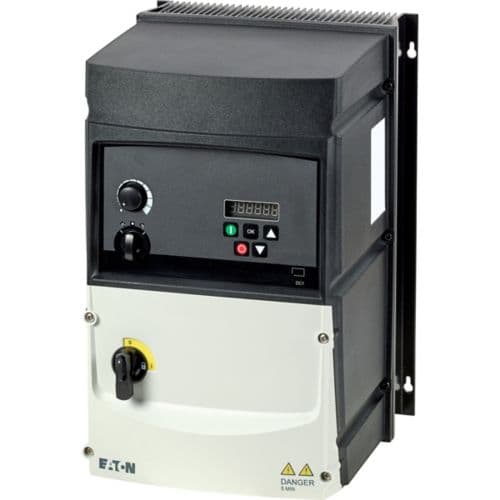

Eaton DC1 Variable frequency drive

Eaton

Eaton DC1 Variable frequency drive

رقم القطعة: 199447

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton DC1 Variable frequency drive

المواصفات

Product NameEaton DC1 Variable frequency drive
Catalog Number199447
Model CodeDC1-34039FB-A66OE1
EAN4015081978366
Product Length/Depth275 mm
Product Height360 mm
Product Width240 mm
Product Weight9.5 kg
CertificationsUL Category Control No.: NMMS, NMMS7 CUL CE IEC/EN 61800-5-1 RoHS, ISO 9001 Certified by UL for use in Canada UL RCM EAC CSA-C22.2 No. 14 IEC/EN 61800-2 UL Listed IEC/EN 61800-3 CE marking IEC/EN61800-5 UkrSEPRO UL report applies to both US and Canada UL 508C UL File No.: E172143
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.199447.html
Catalog NotesEnvironmental class: 3C3, 3S3Overload cycle for 60 s every 600 sFor normal internally and externally ventilated four-pole three-phase asynchronous motors with 1500 rpm at 50 Hz and 1800 rpm at 60 Hz
Apparent power at 400 V15.6 kVA
Apparent power at 480 V18.72 kVA
