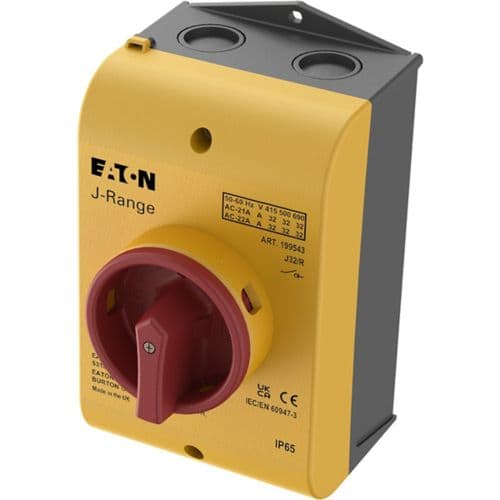

Eaton J-Range enclosed switch-disconnector

Eaton

Eaton J-Range enclosed switch-disconnector

رقم القطعة: 199542

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton J-Range enclosed switch-disconnector

المواصفات

Ambient operating temperature (enclosed) - max40 °C
Ambient operating temperature (enclosed) - min-25 °C
Climatic proofingDamp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
FunctionsInterlockable Emergency switching off function
Number of auxiliary contacts (change-over contacts)0
Number of auxiliary contacts (normally closed contacts)0
Number of auxiliary contacts (normally open contacts)0
Product NameEaton J-Range enclosed switch-disconnector
Catalog Number199542
Model CodeJ25/R
EAN5027590551991
Product Length/Depth115 mm
Product Height180 mm
Product Width100 mm
Product Weight0.447 kg
CertificationsIEC/EN 60947 VDE 0660 IEC/EN 60947-3 IEC/EN 60204
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.199542.html
Catalog NotesRated Short-time Withstand Current (Icw) for a time of 1 second
Actuator typeDoor coupling rotary drive
Actuator colorRed
Suitable forGround mounting
FeaturesVersion as emergency stop installation Version as safety switch Version as main switch Version as maintenance-/service switch
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationUV resistance only in connection with protective shield.
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Degree of protectionNEMA 12
Mounting methodSurface mounting
Fitted with:Red rotary handle and yellow locking ring Assembly sheet screen Push-through cable entry diaphragm
Mounting positionAs required
Shock resistance15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Number of polesThree-pole
Rated uninterrupted current (Iu)25 A
Product categoryMain switch
Pollution degree3
Electrical connection type of main circuitScrew connection
Overvoltage categoryIII
Operating frequency1200 Operations/h
Rated operational voltage (Ue) at AC - max690 V
Rated impulse withstand voltage (Uimp)6000 V AC
Terminal capacity2 x (1 - 4) mm², flexible with ferrules to DIN 46228 1 x (1.5 - 10) mm², solid or stranded 2 x (1.5 - 6) mm², solid or stranded 1 x (1 - 4) mm², flexible with ferrules to DIN 46228
Degree of protection (front side)IP65
Lifespan, mechanical300,000 Operations
Housing materialPlastic
Rated conditional short-circuit current (Iq)80 kA
Short-circuit protection rating50 A gG/gL, Fuse, Contacts
Rated short-time withstand current (Icw)0.64 kA 640 A, Contacts, 1 second
Rated operational power at AC-23A, 400 V, 50 Hz10 kW
Tightening torque1.6 Nm, Screw terminals
Locking facilityLockable in the 0 (Off) position
Rated permanent current at AC-21, 400 V25 A
Device constructionComplete device in housing
Number of switches1
Screw sizeM4, Terminal screw
Safety parameter (EN ISO 13849-1)B10d values as per EN ISO 13849-1, table C.1
Rated operating voltage (Ue) - max690 V
Rated operating voltage (Ue) - min690 V
Rated operational power at AC-3, 380/400 V, 50 Hz0 kW
Uninterrupted currentRated uninterrupted current Iu is specified for max. cross-section.
Voltage per contact pair in series60 V
Safe isolation440 V AC, Between the contacts, According to EN 61140
Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)260 A
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)300 A
Rated breaking capacity at 500 V (cos phi to IEC 60947-3)290 A
Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)250 A
Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)320 A
Rated operational current (Ie) at AC-21, 400 V, 415 V25 A
Rated operational current (Ie) at AC-21, 440 V25 A
Rated operational current (Ie) at AC-21, 500 V25 A
Rated operational current (Ie) at AC-21, 690 V25 A
Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V25 A
Rated operational current (Ie) at AC-22, 500 V25 A
Rated operational current (Ie) at AC-22, 690 V25 A
Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms25 A
