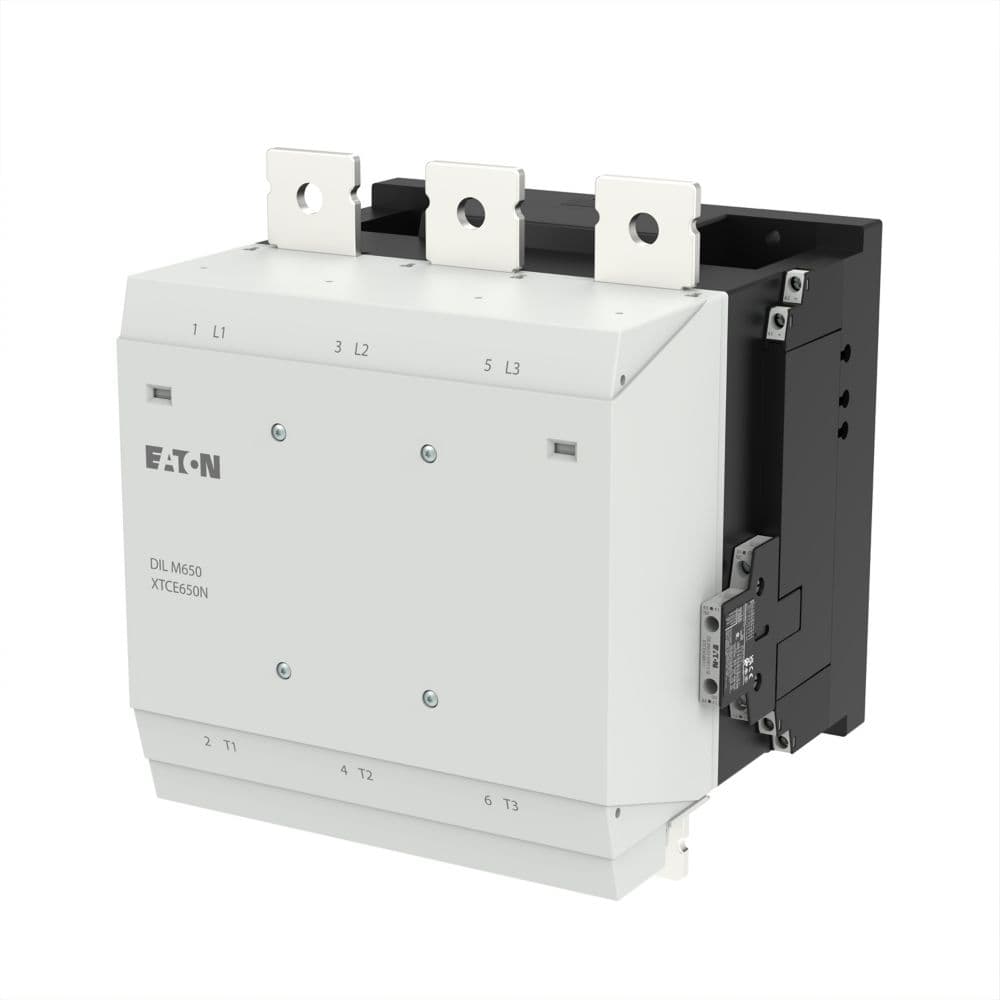

Eaton Moeller® series DILM Contactor

Name: Eaton Moeller® series DILM Contactor
Brand: Eaton
SKU: 208219

رقم القطعة: 208219

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM Contactor

Product Name	Eaton Moeller® series DILM Contactor
Catalog Number	208219
Model Code	DILM650/22(RA250)
EAN	4015082082192
Product Length/Depth	232 mm
Product Height	296 mm
Product Width	250 mm
Product Weight	16.209 kg
Certifications	CE VDE 0660 IEC/EN 60947 CSA Class No.: 3211-04 CSA File No.: 012528 IEC/EN 60947-4-1 CSA-C22.2 No. 60947-4-1-14 UL 60947-4-1 UL File No.: E29096 UL Category Control No.: NLDX UL CSA
Source URL	https://www.eaton.com/gb/en-gb/skuPage.208219.html
Catalog Notes	Contacts according to EN 50012Also tested according to AC-3e up to 690 V.Also suitable for motors with efficiency class IE3.Conventional thermal current Ith of main contacts (1-pole, open) at 60°
Conventional thermal current Ith at 40°C (3-pole, open)	1041 A
Conventional thermal current Ith at 50°C (3-pole, open)	931 A
Conventional thermal current Ith at 55°C (3-pole, open)	888 A
Conventional thermal current Ith at 60°C (3-pole, open)	850 A
Conventional thermal current Ith of main contacts (1-pole, open)	2125 A
