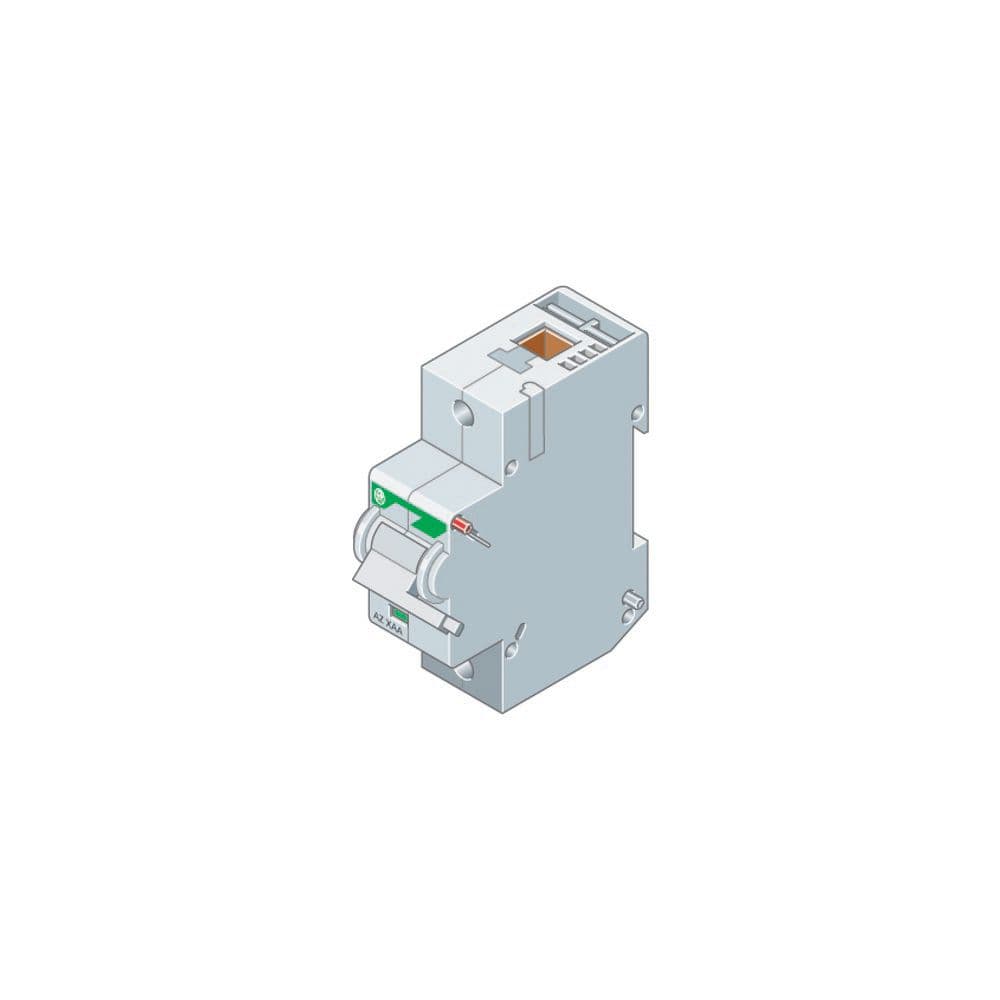

Eaton Shunt trip

Name: Eaton Shunt trip
Brand: Eaton
SKU: 212061

رقم القطعة: 212061

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Shunt trip

المواصفات

Ambient operating temperature - max	40 °C
Ambient operating temperature - min	-5 °C
Functions	Shunt release (for power circuit breaker)
Number of contacts (normally closed contacts)	1
Number of contacts (normally open contacts)	1
Special features	IP20 (switch)
Product Name	Eaton Shunt trip
Catalog Number	212061
Model Code	AZ-XAA(12-60VAC)
EAN	4015082120610
Product Length/Depth	80 mm
Product Height	75 mm
Product Width	39.1 mm
Product Weight	0.159 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.212061.html
Used with	Accessory Accessory for miniature circuit breaker
Type	AccessoryAccessory for miniature circuit breaker
Degree of protection	IP40
Mounting method	Top-hat rail IEC/EN 60715
Accessory/spare part type	Shunt release
Rated operational voltage (Ue) - max	60 V
Terminal capacity (solid wire)	1 mm² - 4 mm² (2x) 1 mm² - 25 mm² (1x)
Frequency rating	50 Hz / 60 Hz
Rated insulation voltage (Ui)	440 VAC
Terminal capacity (cable)	1 mm² - 25 mm² (1x) 1 mm² - 4 mm² (2x)
Frame	Standard front dimension: 45 mm
Lifespan, mechanical	4000 operations
Voltage type	AC/DC
Number of contacts (change-over contacts)	0
Number of switches (fault signal)	0
Mounting width	17.5 mm (1 space unit)
Additional equipment required	Shunt release (for power circuit breaker)
Assembly width	1
Number of poles at main contact unit - max	1
Device fitting	Miniature circuit breaker (MCB)
Terminal protection	Protection against electric shock to IEC 536
Terminal type	Twin-purpose terminals
Voltage range	12 V AC - 60 V AC
Enclosure width	90 mm
Duty factor	2 ms
Admissible back-up fuse	Inherently short-circuit-proof
Inrush current at AC	38 A
Inrush current at DC	34 A
Pick-up time AC	2.1 ms
