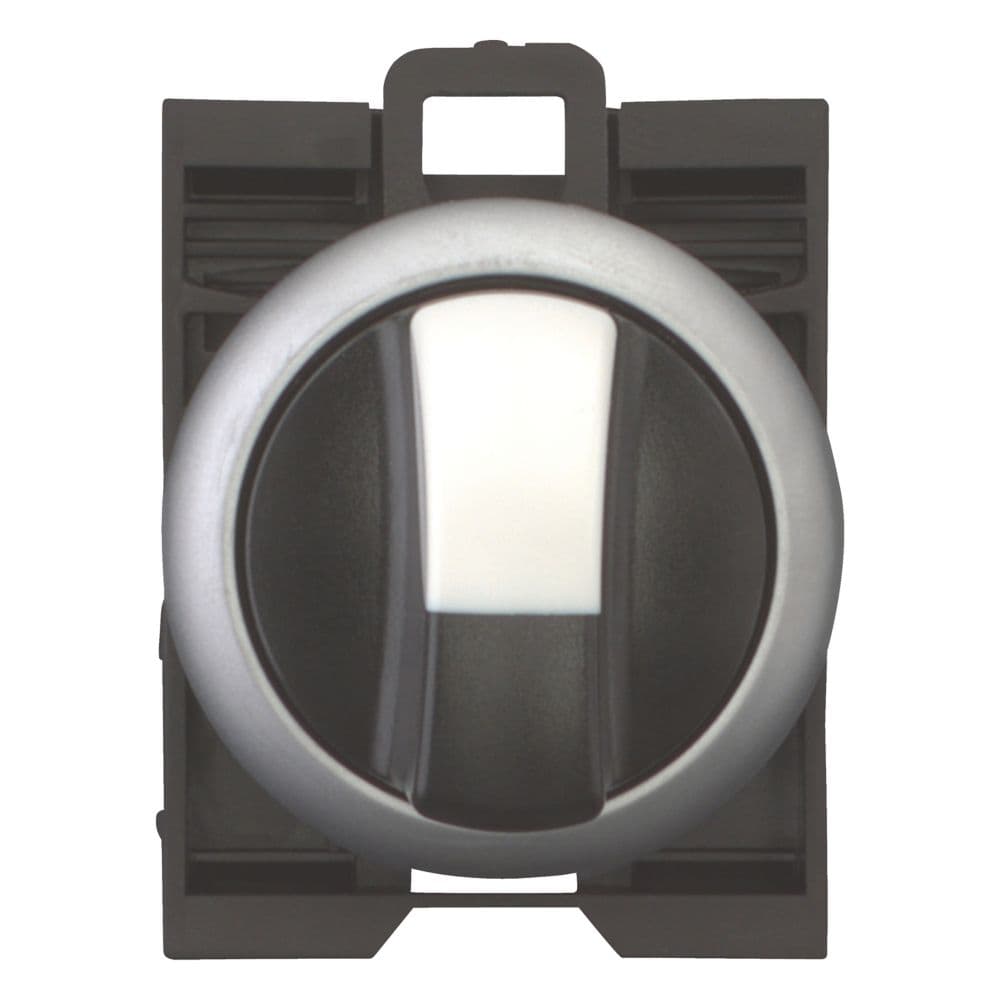

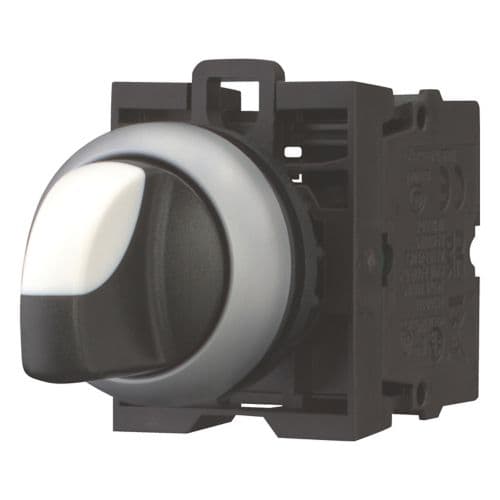

Eaton Moeller® series M22 selector switch

Eaton

Eaton Moeller® series M22 selector switch

رقم القطعة: 216520

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 selector switch

المواصفات

FunctionsStay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product NameEaton Moeller® series M22 selector switch
Catalog Number216520
Model CodeM22-WRK3/K20
EAN4015082165208
Product Length/Depth130 mm
Product Height30 mm
Product Width30 mm
Product Weight0.037 kg
CertificationsUL UL File No.: E29184 CSA File No.: 012528 IEC/EN 60947 CSA CSA-C22.2 No. 14-05 CE CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 IEC/EN 60947-5 UL 508 UL Category Control No.: NKCR VDE 0660 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216520.html
Actuator functionMaintained Switching function latching
Actuator typeToggle
Number of switch positions3
Actuator colorBlack
Fitted with:Front ring
Electric connection typeScrew connection
DesignWith thumb-grip Classical
Bezel colorTitanium
Bezel materialPlastic
