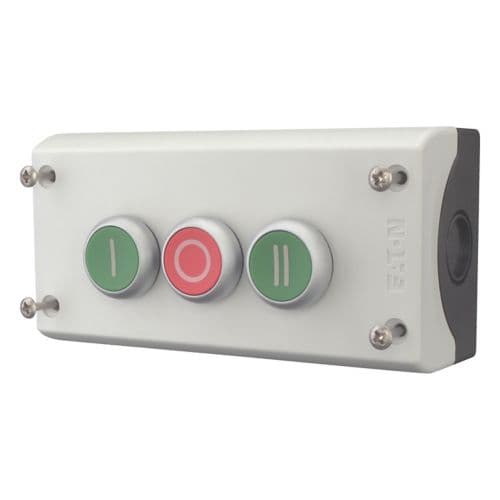

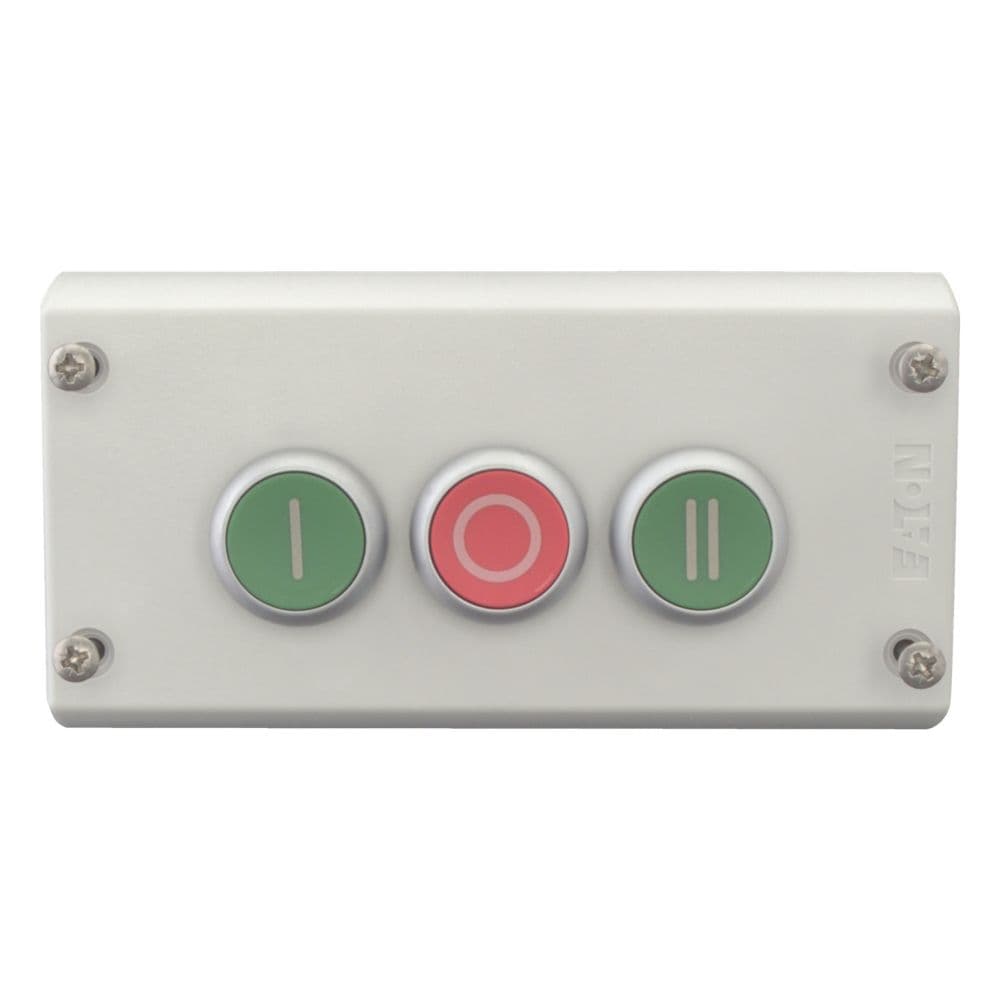

Eaton Moeller® series M22 assembled pushbutton

Eaton

Eaton Moeller® series M22 assembled pushbutton

رقم القطعة: 216532

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 assembled pushbutton

المواصفات

RAL-number7035
Product NameEaton Moeller® series M22 assembled pushbutton
Catalog Number216532
Model CodeM22-I3-M1
EAN4015082165321
Product Length/Depth80 mm
Product Height70 mm
Product Width153 mm
Product Weight0.333 kg
CertificationsIEC/EN 60947 CE VDE 0660 CSA-C22.2 No. 94-91 CSA Class No.: 3211-03 UL UL 508 CSA File No.: 012528 UL File No.: E29184 CSA-C22.2 No. 14-05 UL Category Control No.: NKCR CSA IEC/EN 60947-5
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216532.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionMomentary
Actuator colorGreen, red
Enclosure materialPlastic
Knockouts2 x M25/20 (cable entry knockouts at the side) 2 x M20 (cable entry knockouts at the base)
DesignEnclosure
Bezel colorTitanium
InscriptionInscribed
Number of command positions3
Number of locations3
Enclosure colorGray
Actuating force5 N
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.8 mm
