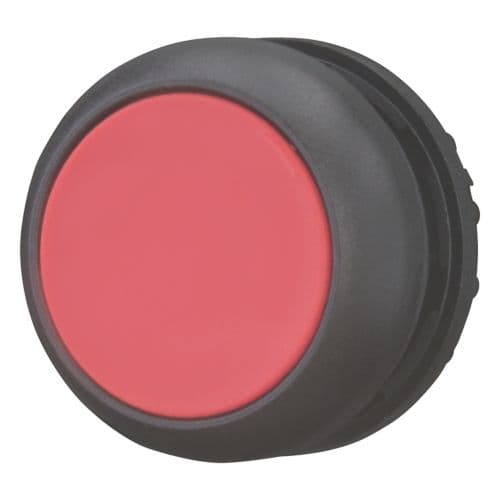

Eaton Moeller® series M22 pushbutton

Eaton

Eaton Moeller® series M22 pushbutton

رقم القطعة: 216615

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 pushbutton

المواصفات

FunctionsStay-put/spring-return function can be changed on device
Product NameEaton Moeller® series M22 pushbutton
Catalog Number216615
Model CodeM22-DR-W
EAN4015082166151
Product Length/Depth30 mm
Product Height30 mm
Product Width30 mm
Product Weight0.011 kg
CompliancesCE Marked
CertificationsEN 60947-5 IEC 60947-5 CSA Std. C22.2 No. 14-05 CSA Std. C22.2 No. 94-91 UL 508 VDE CSA IEC/EN 60947 CSA File No.: 012528 IEC/EN 60947-5 UL CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 UL Category Control No.: NKCR UL File No.: E29184 CE CSA-C22.2 No. 14-05 VDE 0660 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216615.html
Actuator functionMaintained Switching function latching
Actuator colorWhite
Fitted with:Front ring
DesignFlat Classical
Bezel colorTitanium
Bezel materialPlastic
Lens typeRound
InscriptionBlank
Number of command positions1
Actuating force5 N
