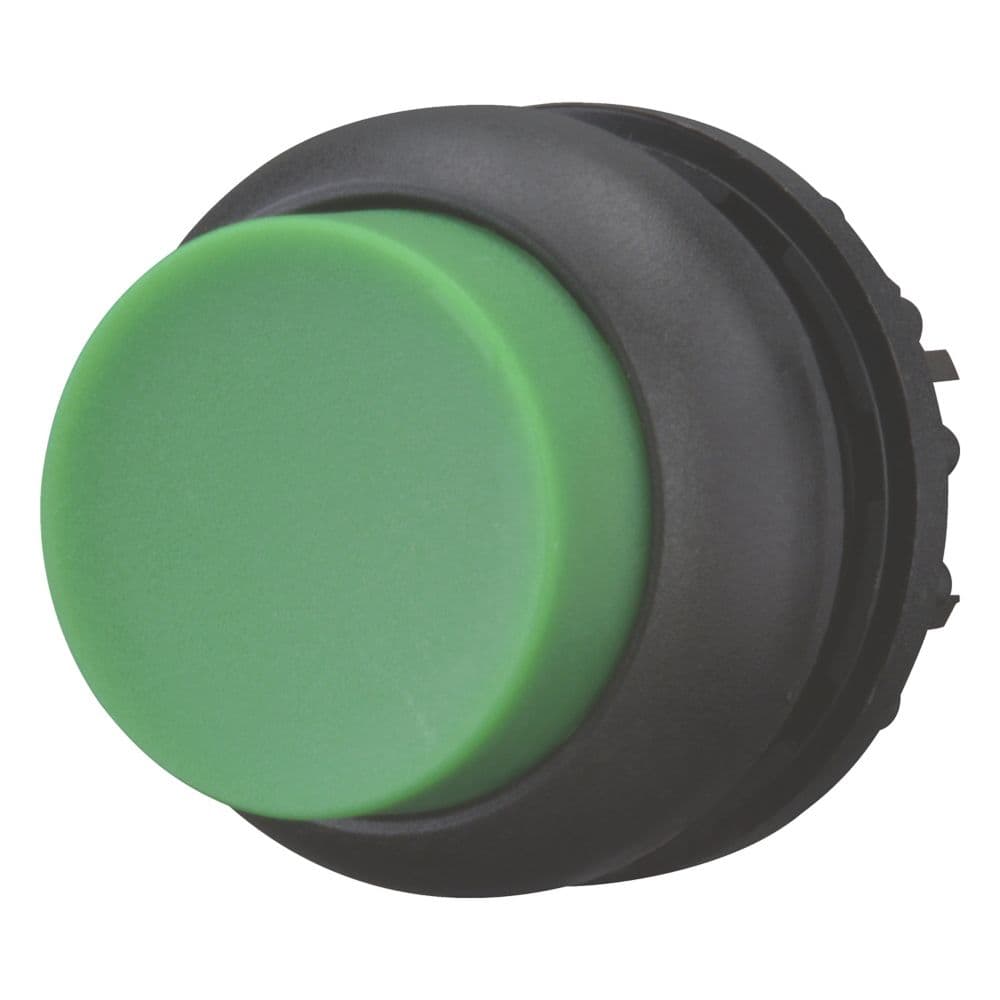

Eaton Moeller® series M22 pushbutton

Eaton

Eaton Moeller® series M22 pushbutton

رقم القطعة: 216670

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 pushbutton

المواصفات

FunctionsStay-put/spring-return function can be changed on device
Product NameEaton Moeller® series M22 pushbutton
Catalog Number216670
Model CodeM22S-DRH-G
EAN4015082166700
Product Length/Depth30 mm
Product Height35 mm
Product Width30 mm
Product Weight0.013 kg
CertificationsUL 508 CSA-C22.2 No. 94-91 IEC/EN 60947 VDE 0660 IEC/EN 60947-5 CSA File No.: 012528 CSA-C22.2 No. 14-05 UL Category Control No.: NKCR CE UL File No.: E29184 CSA Class No.: 3211-03 CSA UL DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216670.html
Actuator functionMaintained Switching function latching
Actuator colorGreen
Fitted with:Front ring
DesignExtended Classical
Bezel colorBlack
Bezel materialPlastic
Lens typeRound
InscriptionBlank
Number of command positions1
Actuating force5 N
