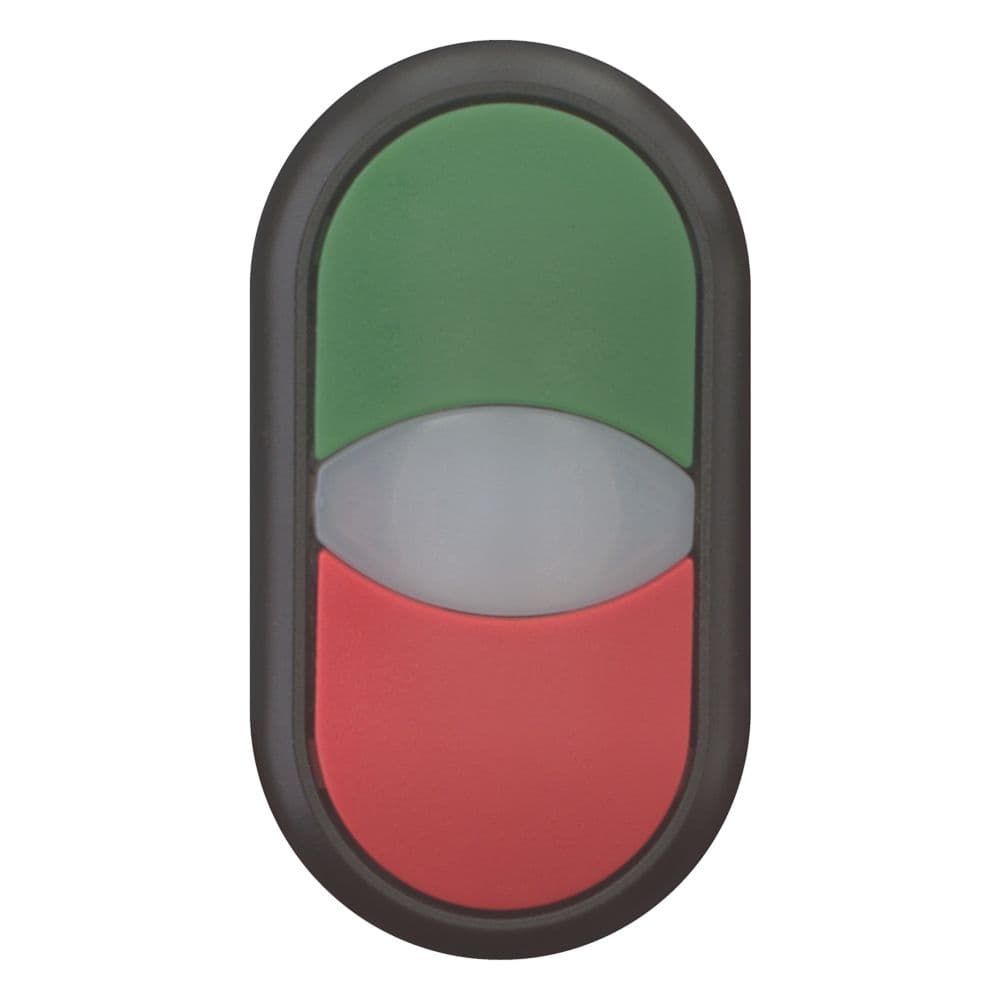

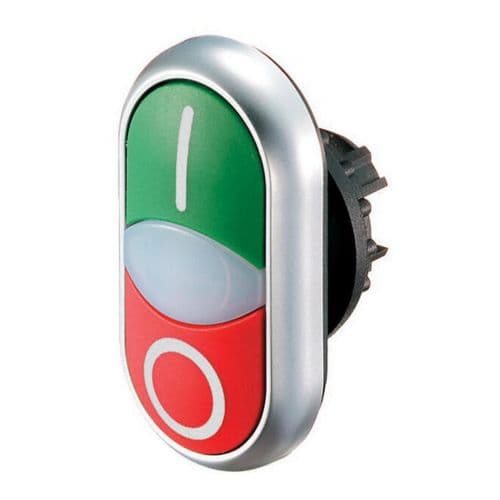

Eaton Moeller® series M22 double actuator pushbutton

Name: Eaton Moeller® series M22 double actuator pushbutton
Brand: Eaton
SKU: 216699

رقم القطعة: 216699

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 double actuator pushbutton

Product Name	Eaton Moeller® series M22 double actuator pushbutton
Catalog Number	216699
Model Code	M22S-DDL-GR
EAN	4015082166991
Product Length/Depth	30 mm
Product Height	55 mm
Product Width	30 mm
Product Weight	0.015 kg
Compliances	GoST-R CE Marked Bureau Veritas
Certifications	CCC Marked CSA Certified Lloyd's Register Certified CE IEC/EN 60947 UL 508 UL Category Control No.: NKCR CSA VDE 0660 CSA-C22.2 No. 94-91 UL File No.: E29184 CSA File No.: 012528 IEC/EN 60947-5 UL CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216699.html
Catalog Notes	Includes contact block mounting adapter.
Actuator function	Momentary Spring-return
Actuator color	Green, red
Fitted with:	Front ring
Lens color	White
Design	Non-Flush Classical
Bezel color	Black
Bezel material	Plastic
Lens type	Oval
Inscription	Blank
Number of command positions	2
Actuating force	5 N
Illumination	Illuminated
