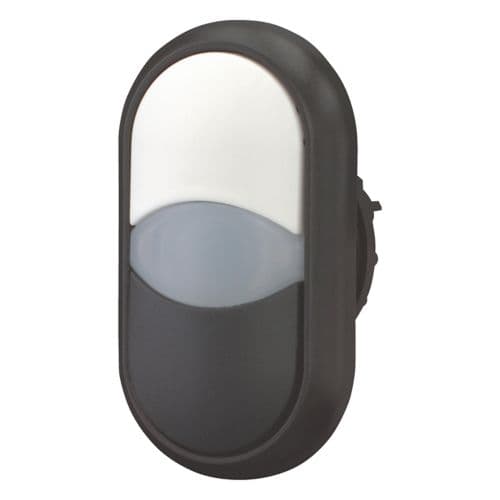

Eaton Moeller® series M22 double actuator pushbutton
رقم القطعة: 216706
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller® series M22 double actuator pushbutton
المواصفات
| Product Name | Eaton Moeller® series M22 double actuator pushbutton |
|---|---|
| Catalog Number | 216706 |
| Model Code | M22-DDL-WS-X1/X0 |
| EAN | 4015082167066 |
| Product Length/Depth | 30 mm |
| Product Height | 55 mm |
| Product Width | 30 mm |
| Product Weight | 0.015 kg |
| Certifications | CSA UL File No.: E29184 CSA Class No.: 3211-03 IEC/EN 60947 UL 508 CSA-C22.2 No. 14-05 CE CSA File No.: 012528 CSA-C22.2 No. 94-91 VDE 0660 IEC/EN 60947-5 UL UL Category Control No.: NKCR DNV GL LR |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.216706.html |
| Actuator function | Momentary Spring-return |
| Actuator color | Black and white |
| Features | Labelled |
| Fitted with: | Front ring |
| Lens color | White |
| Design | Non-Flush Classical |
| Bezel color | Titanium |
| Bezel material | Plastic |
| Lens type | Oval |
| Inscription | Inscribed |
| Number of command positions | 2 |
| Actuating force | 5 N |
