Eaton Moeller® series M22 mushroom actuator

Eaton

Eaton Moeller® series M22 mushroom actuator

رقم القطعة: 216744

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

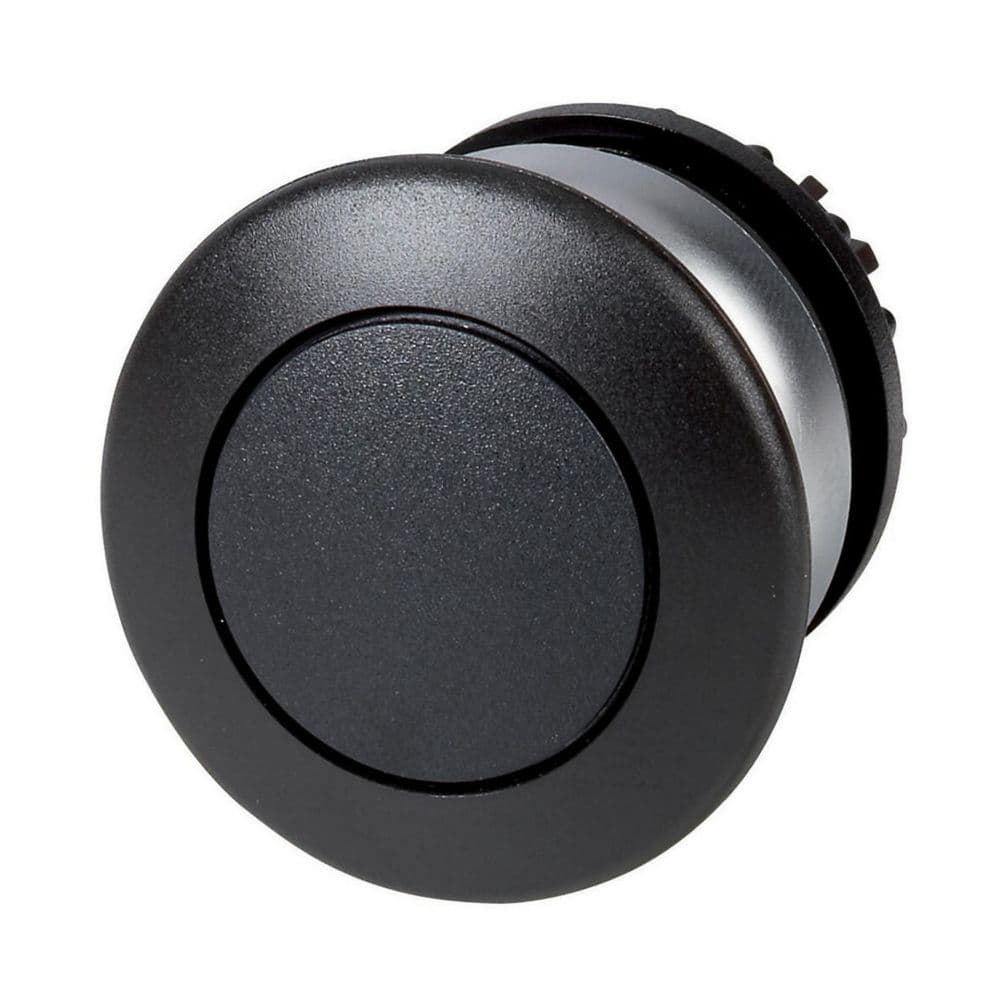

Eaton Moeller® series M22 mushroom actuator

المواصفات

RAL-number9005
Product NameEaton Moeller® series M22 mushroom actuator
Catalog Number216744
Model CodeM22S-DRP-S
EAN4015082167448
Product Length/Depth37 mm
Product Height43 mm
Product Width37 mm
Product Weight0.016 kg
CertificationsCSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 IEC/EN 60947 UL Category Control No.: NKCR UL File No.: E29184 UL VDE 0660 CSA UL 508 CSA File No.: 012528 CE CSA Class No.: 3211-03 IEC/EN 60947-5 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216744.html
Actuator functionMaintained Switching function latching
Actuator colorBlack
Fitted with:Front ring
DesignMushroom-shaped Classical
Bezel colorBlack
Bezel materialPlastic
Lens typeRound
InscriptionBlank
Actuating force5 N
IlluminationNon-illuminated
Unlocking methodNone
