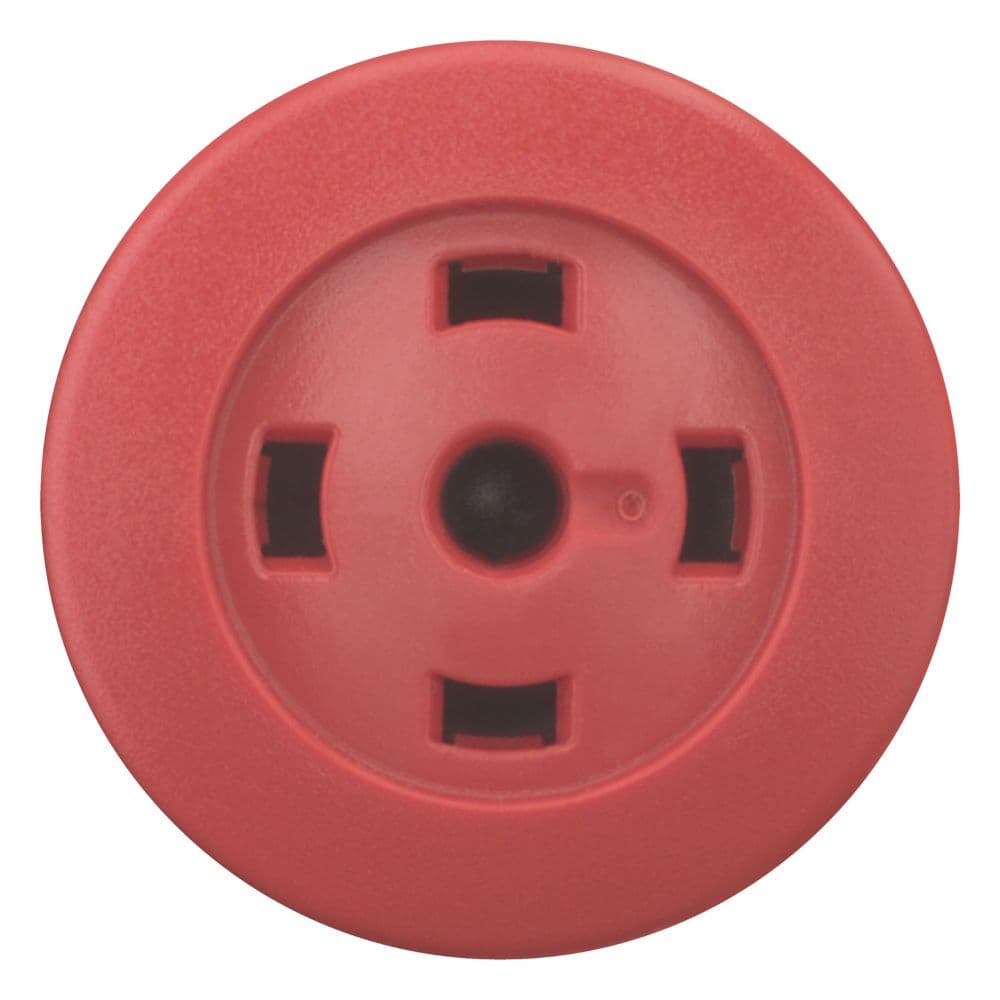

Eaton Moeller® series M22 mushroom actuator

Eaton

Eaton Moeller® series M22 mushroom actuator

رقم القطعة: 216764

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 mushroom actuator

المواصفات

FunctionsStay-put/spring-return function can be changed on device
Product NameEaton Moeller® series M22 mushroom actuator
Catalog Number216764
Model CodeM22S-DRP-R-X
EAN4015082167646
Product Length/Depth37 mm
Product Height43 mm
Product Width37 mm
Product Weight0.016 kg
CertificationsUL IEC/EN 60947-5 UL 508 CSA-C22.2 No. 14-05 UL File No.: E29184 CSA File No.: 012528 IEC/EN 60947 VDE 0660 CSA Class No.: 3211-03 CE CSA CSA-C22.2 No. 94-91 UL Category Control No.: NKCR DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216764.html
Actuator functionSwitching function latching Maintained
Actuator colorRed
Fitted with:Front ring
DesignMushroom-shaped Classical
Bezel colorBlack
Bezel materialPlastic
Lens typeRound
Number of command positions1
Actuating force5 N
