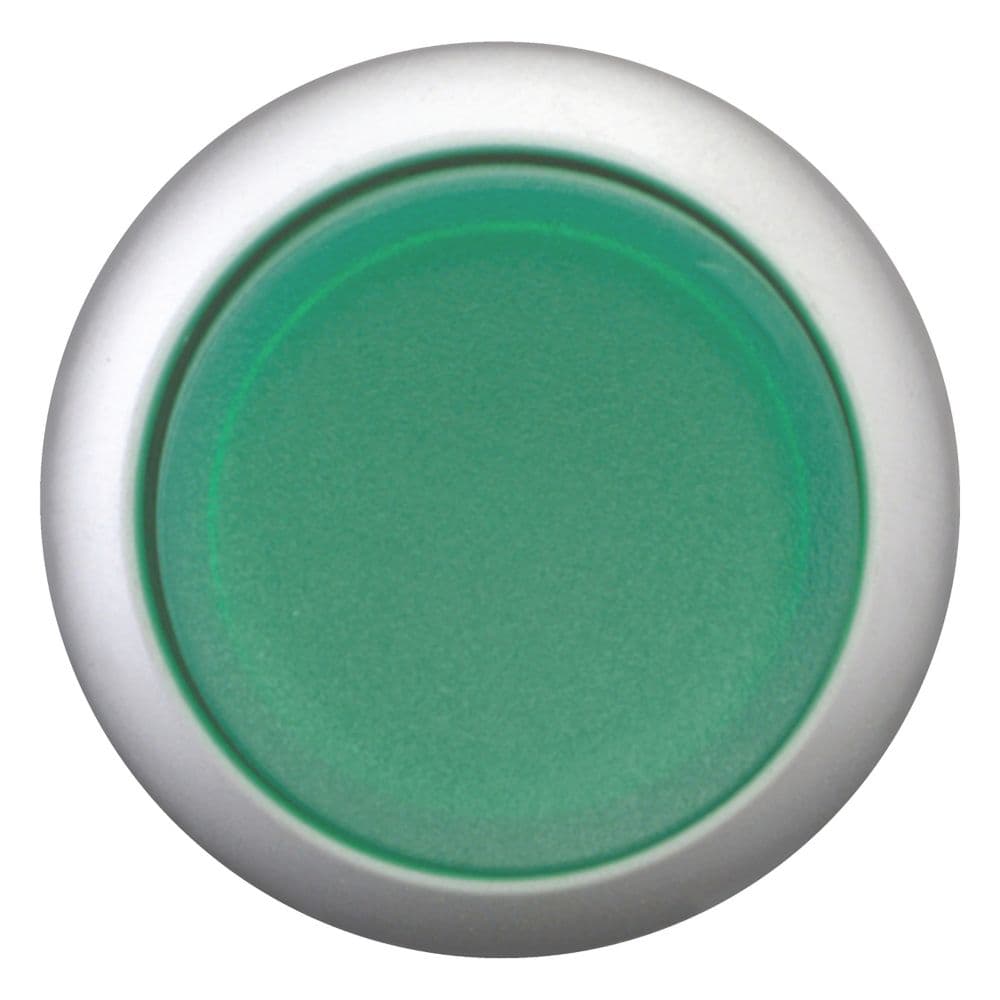

Eaton Moeller® series M22 illuminated pushbutton

Eaton

Eaton Moeller® series M22 illuminated pushbutton

رقم القطعة: 216796

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 illuminated pushbutton

المواصفات

FunctionsStay-put/spring-return function can be changed on device
Product NameEaton Moeller® series M22 illuminated pushbutton
Catalog Number216796
Model CodeM22-DRLH-G
EAN4015082167967
Product Length/Depth30 mm
Product Height35 mm
Product Width30 mm
Product Weight0.013 kg
CompliancesCE Marked
CertificationsUL 508 CSA Std. C22.2 No. 14-05 EN 60947-5 CSA Std. C22.2 No. 94-91 IEC 60947-5 VDE UL File No.: E29184 CSA CSA Class No.: 3211-03 IEC/EN 60947-5 UL Category Control No.: NKCR IEC/EN 60947 CSA File No.: 012528 UL VDE 0660 CE CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216796.html
Actuator functionMaintained Switching function latching
Actuator colorGreen
MaterialTitanium front ring
Fitted with:Front ring
DesignExtended Classical
Bezel colorTitanium
Bezel materialPlastic
Lens typeRound
InscriptionBlank
Number of command positions1
Actuating force5 N
