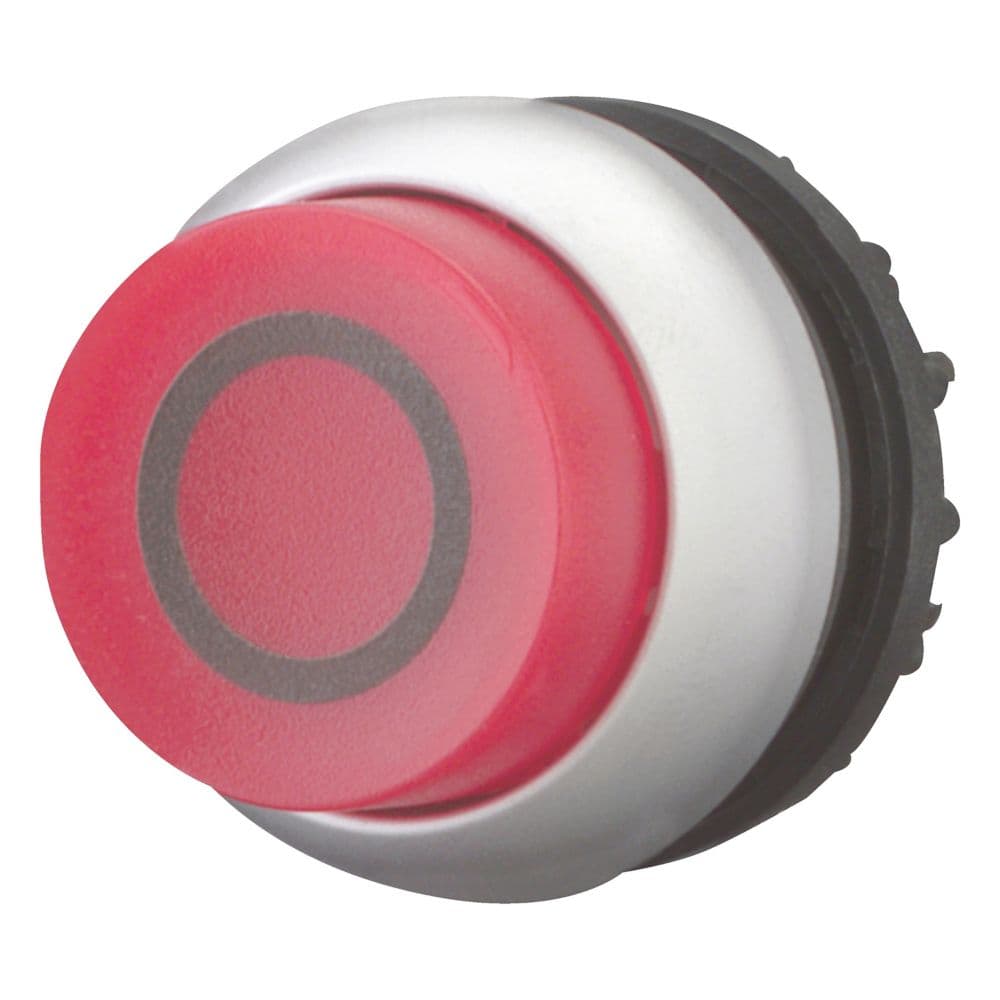

Eaton Moeller® series M22 illuminated pushbutton

Eaton

Eaton Moeller® series M22 illuminated pushbutton

رقم القطعة: 216804

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 illuminated pushbutton

المواصفات

FunctionsStay-put/spring-return function can be changed on device
Product NameEaton Moeller® series M22 illuminated pushbutton
Catalog Number216804
Model CodeM22-DRLH-R-X0
EAN4015082168049
Product Length/Depth30 mm
Product Height35 mm
Product Width30 mm
Product Weight0.013 kg
CertificationsCSA CSA Class No.: 3211-03 CE UL File No.: E29184 UL 508 CSA-C22.2 No. 94-91 IEC/EN 60947-5 CSA File No.: 012528 UL CSA-C22.2 No. 14-05 UL Category Control No.: NKCR IEC/EN 60947 VDE 0660 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216804.html
Actuator functionSwitching function latching Maintained
Actuator colorRed
FeaturesLabelled
Fitted with:Front ring
DesignExtended Classical
Bezel colorTitanium
Bezel materialPlastic
Lens typeRound
InscriptionInscribed
Number of command positions1
Actuating force5 N
