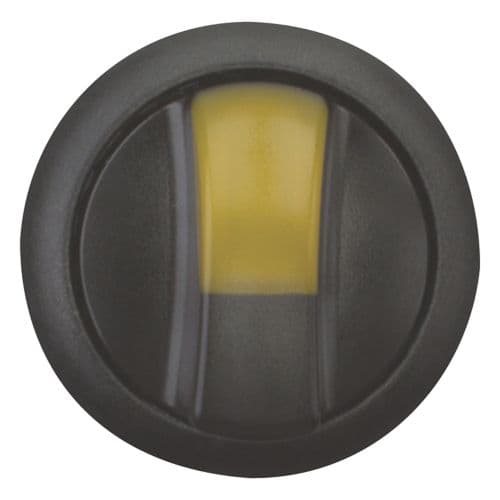

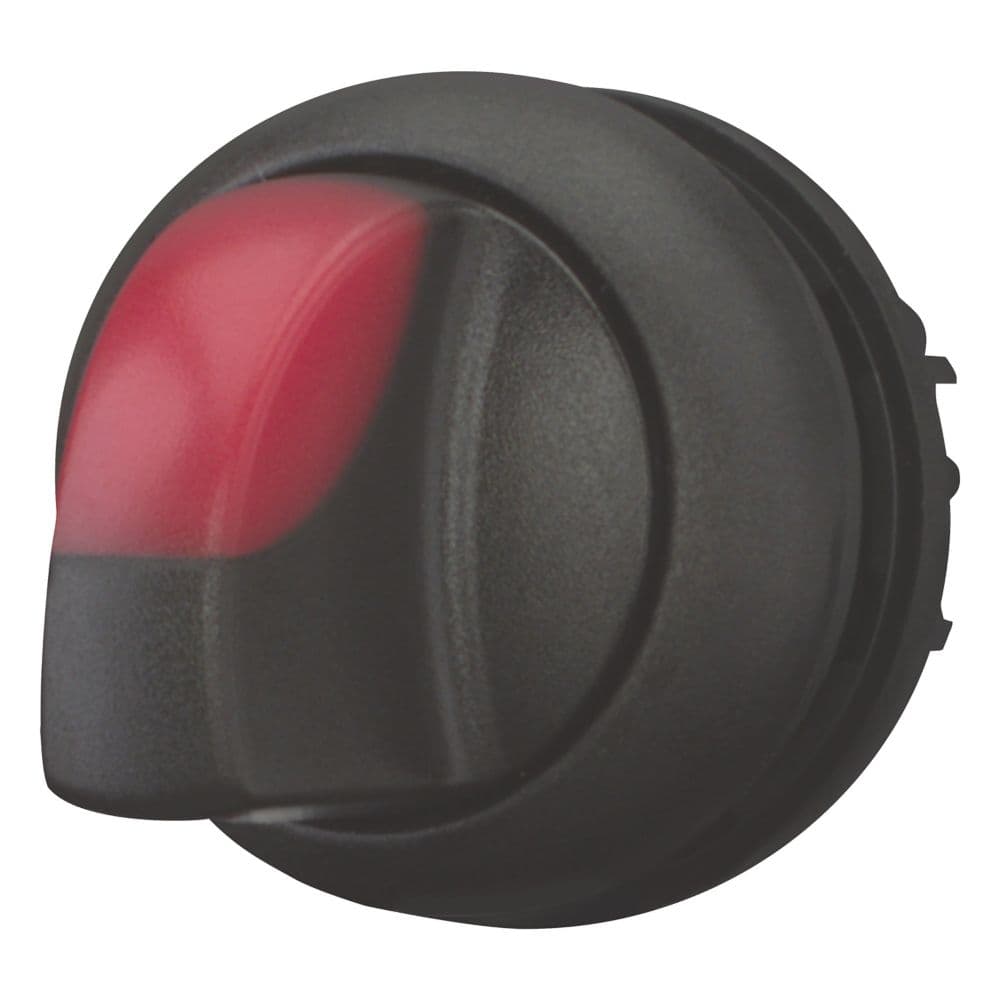

Eaton Moeller® series M22 illuminated selector switch

Eaton

Eaton Moeller® series M22 illuminated selector switch

رقم القطعة: 216815

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 illuminated selector switch

المواصفات

FunctionsStay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product NameEaton Moeller® series M22 illuminated selector switch
Catalog Number216815
Model CodeM22S-WLK-R
EAN4015082168155
Product Length/Depth46 mm
Product Height30 mm
Product Width30 mm
Product Weight0.013 kg
CertificationsCSA CSA File No.: 012528 UL CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 IEC/EN 60947-5 IEC/EN 60947 UL 508 UL Category Control No.: NKCR CE CSA Class No.: 3211-03 UL File No.: E29184 VDE 0660
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216815.html
Actuator functionMomentary Spring-return
Actuator typeToggle
Number of switch positions2
Actuator colorBlack
Fitted with:Front ring
DesignWith thumb-grip
Bezel colorBlack
Bezel materialPlastic
Indicator colorRed
Lens typeRound
