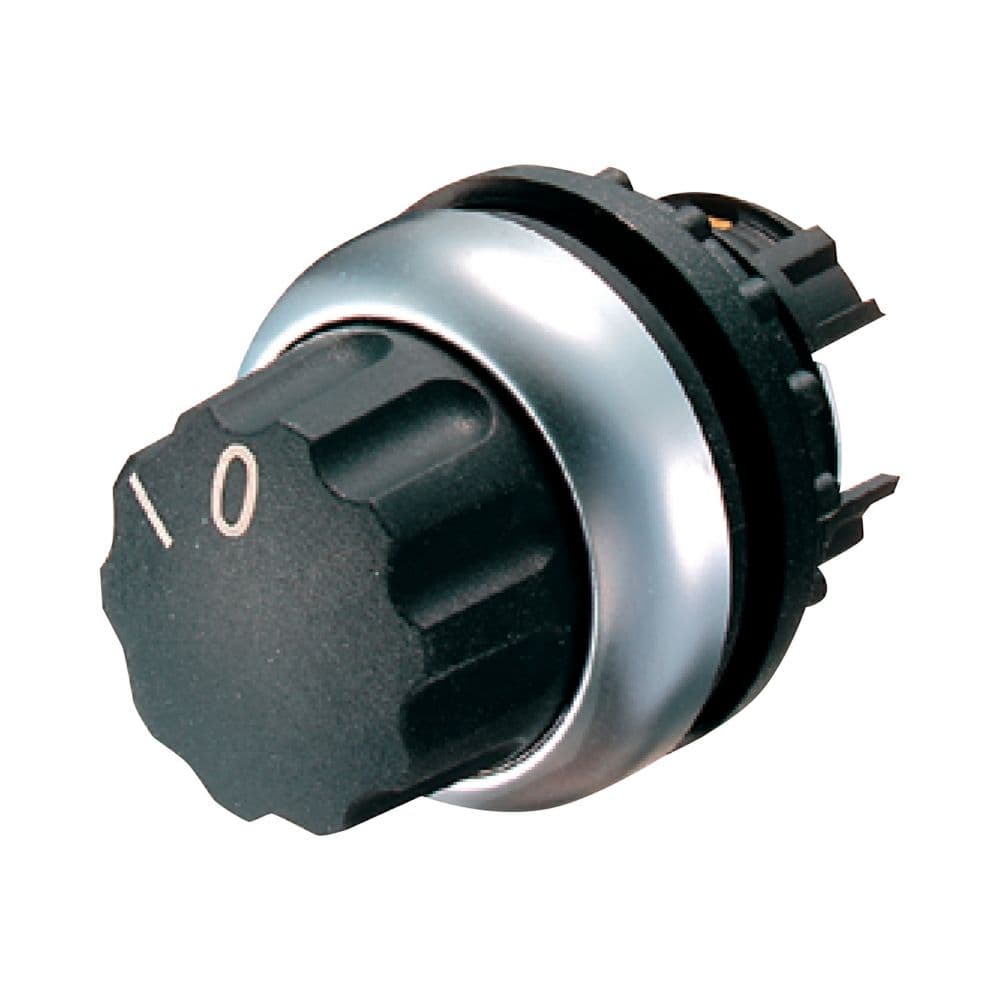

Eaton Moeller® series M22 selector switch

Name: Eaton Moeller® series M22 selector switch
Brand: Eaton
SKU: 216855

رقم القطعة: 216855

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 selector switch

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 selector switch
Catalog Number	216855
Model Code	M22-WR
EAN	4015082168551
Product Length/Depth	43 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.013 kg
Compliances	CE Marked
Certifications	UL 508 CSA Std. C22.2 No. 94-91 IEC 60947-5 CSA Std. C22.2 No. 14-05 EN 60947-5 VDE CSA IEC/EN 60947 CE CSA File No.: 012528 CSA-C22.2 No. 94-91 IEC/EN 60947-5 UL CSA-C22.2 No. 14-05 UL Category Control No.: NKCR VDE 0660 UL File No.: E29184 CSA Class No.: 3211-03 DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216855.html
Actuator function	Switching function latching Maintained
Actuator type	Turn button
Number of switch positions	2
Actuator color	Black
Fitted with:	Front ring
Design	With rotary head Classical
Bezel color	Titanium
Bezel material	Plastic
Indicator color	Other
Lens type	Round
Inscription	Inscribed
