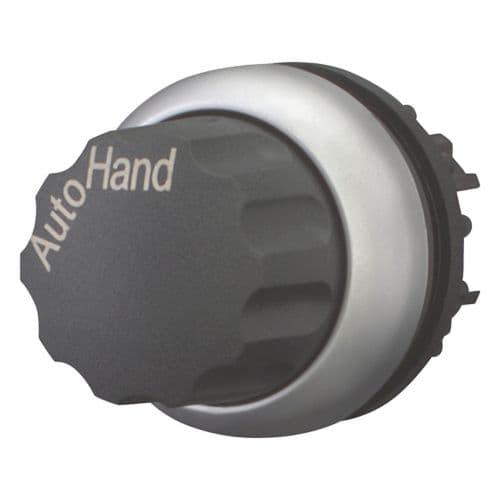

Eaton Moeller® series M22 selector switch

Eaton

Eaton Moeller® series M22 selector switch

رقم القطعة: 216863

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 selector switch

المواصفات

FunctionsStay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product NameEaton Moeller® series M22 selector switch
Catalog Number216863
Model CodeM22-WR3
EAN4015082168636
Product Length/Depth43 mm
Product Height30 mm
Product Width30 mm
Product Weight0.013 kg
CompliancesCE Marked
CertificationsEN 60947-5 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 UL 508 IEC 60947-5 VDE UL Category Control No.: NKCR CE IEC/EN 60947-5 UL UL File No.: E29184 CSA-C22.2 No. 94-91 CSA-C22.2 No. 14-05 IEC/EN 60947 VDE 0660 CSA CSA Class No.: 3211-03 CSA File No.: 012528
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216863.html
Actuator functionSwitching function latching Maintained
Actuator typeTurn button
Number of switch positions3
Actuator colorBlack
Fitted with:Front ring Plunger bridge for the middle contact
DesignWith rotary head
Bezel colorTitanium
Bezel materialPlastic
Indicator colorOther
Lens typeRound
InscriptionInscribed
