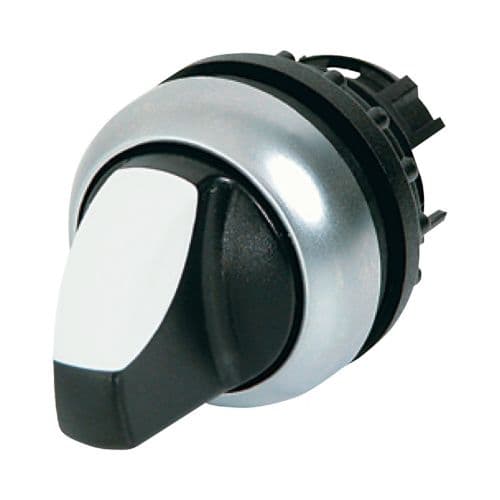

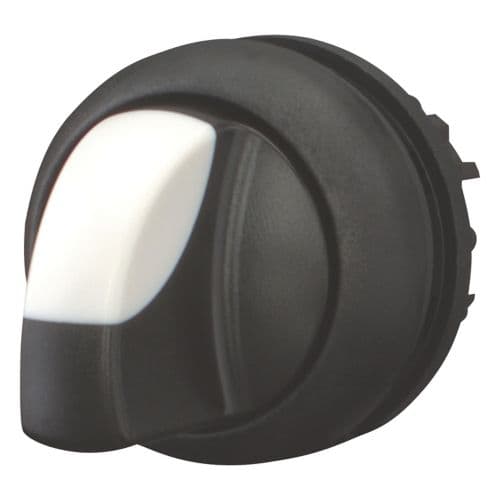

Eaton Moeller® series M22 selector switch

Name: Eaton Moeller® series M22 selector switch
Brand: Eaton
SKU: 216870

رقم القطعة: 216870

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 selector switch

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 selector switch
Catalog Number	216870
Model Code	M22-WK3
EAN	4015082168704
Product Length/Depth	46 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.013 kg
Compliances	CE Marked
Certifications	UL 508 CSA Std. C22.2 No. 94-91 CSA Std. C22.2 No. 14-05 EN 60947-5 IEC 60947-5 VDE CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 IEC/EN 60947-5 CSA File No.: 012528 CSA-C22.2 No. 14-05 UL CSA UL Category Control No.: NKCR UL File No.: E29184 CE IEC/EN 60947 VDE 0660
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216870.html
Actuator function	Momentary Spring-return
Actuator type	Toggle
Number of switch positions	3
Actuator color	Black
Fitted with:	Front ring Plunger bridge for the middle contact
Design	With thumb-grip
Bezel color	Titanium
Bezel material	Plastic
Indicator color	Other
Lens type	Round
