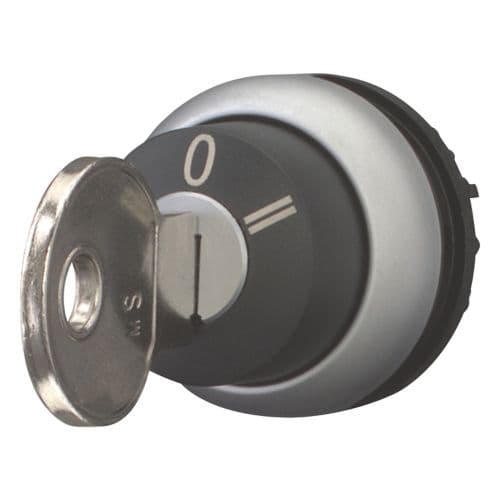

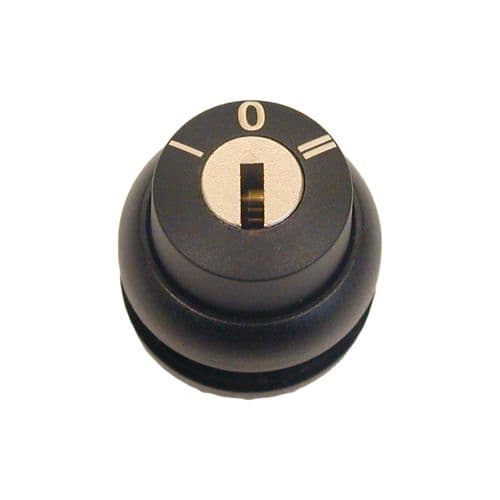

Eaton Moeller® series M22 key-operated actuator

Name: Eaton Moeller® series M22 key-operated actuator
Brand: Eaton
SKU: 216900

رقم القطعة: 216900

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 key-operated actuator

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 key-operated actuator
Catalog Number	216900
Model Code	M22-WRS3
EAN	4015082169008
Product Length/Depth	70 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.031 kg
Compliances	CE Marked
Certifications	EN 60947-5 CSA Std. C22.2 No. 14-05 CSA Std. C22.2 No. 94-91 IEC 60947-5 UL 508 VDE CSA-C22.2 No. 14-05 CSA Class No.: 3211-03 UL Category Control No.: NKCR UL UL File No.: E29184 IEC/EN 60947 CSA-C22.2 No. 94-91 VDE 0660 CSA File No.: 012528 CSA CE IEC/EN 60947-5 DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216900.html
Actuator function	Maintained Key withdrawable in position 2 Key withdrawable in position 0 Switching function latching Key withdrawable in position 1
Actuator type	Key
Number of switch positions	3
Actuator color	Black
Fitted with:	Front ring Plunger bridge for the middle contact
Design	Key operated Classical
Bezel color	Titanium
Bezel material	Plastic
Indicator color	Other
Lens type	Round
