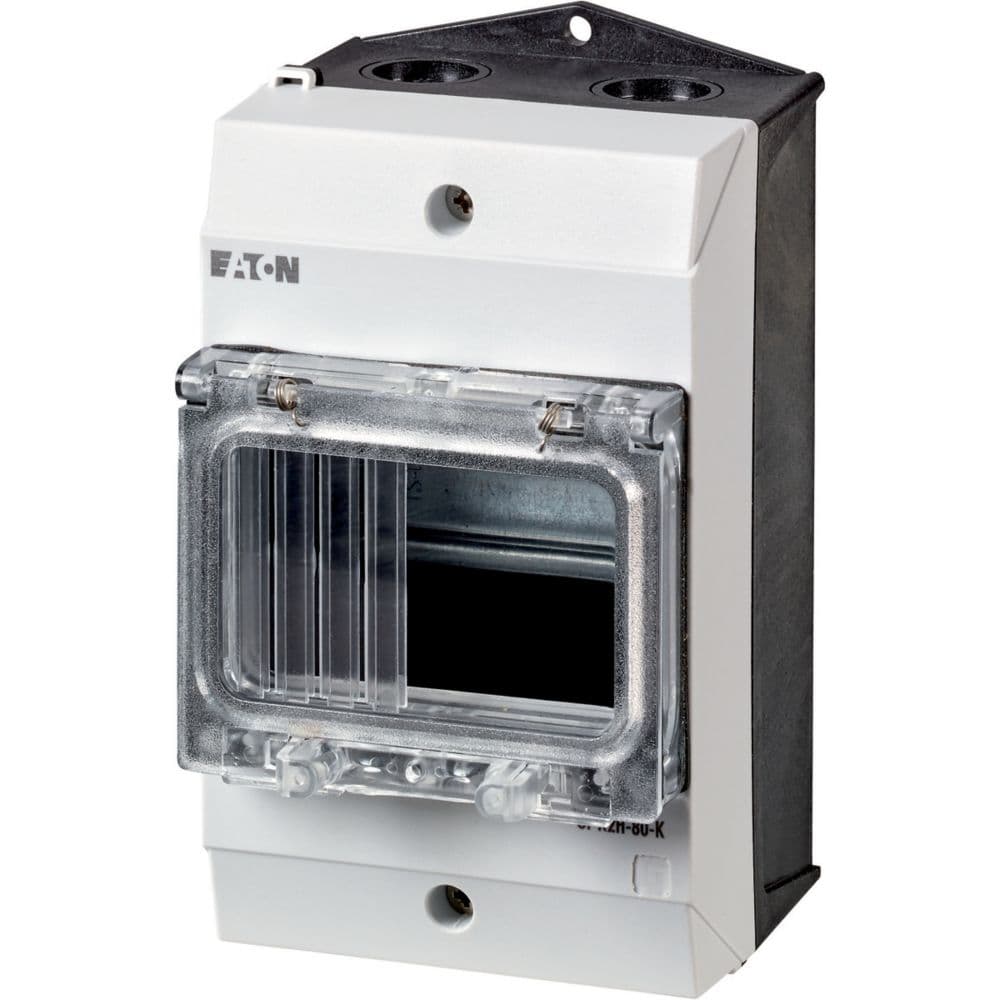

Eaton Moeller® series CI-K Insulated enclosure

المواصفات

Ambient operating temperature - max70 °C
Ambient operating temperature - min-25 °C
Climatic proofingDamp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Product NameEaton Moeller® series CI-K Insulated enclosure
Catalog Number229310
Model CodeCI-K2H-80-K
EAN4015082293109
Product Length/Depth100 mm
Product Height180 mm
Product Width100 mm
Product Weight0.36 kg
CertificationsIEC 60068-2-11 UL94: VO/1.5 mm thickness IEC/EN 60529 DIN EN 62208 UL94: HB
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.229310.html
Suitable forEmergency stop
FeaturesUV resistance beneath protective shield Halogen free
TypeBasic enclosure
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationPlease enquire
10.2.5 LiftingNot applicable.
10.2.6 Mechanical impactMeets the product standard's requirements.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesMeets the product standard's requirements.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockIs the panel builder's responsibility.
10.6 Incorporation of switching devices and componentsIs the panel builder's responsibility.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialMeets the product standard's requirements.
Degree of protectionIP65 NEMA Other
Enclosure materialPlastic 1 Ω x 10¹³ (Surface resistance to IEC 60093)
Dielectric strength30 kV/mm, according to IEC 60243-1
Surface treatmentResistant to corrosion
Mounting depth70 mm
ModelSurface mounting
Fitted with:Control cable entry Hinged cover
Temperature resistance-40 - 120 °C (enclosure) -40 - 80 °C (gasket)
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss10 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
Product categoryEmpty enclosures
KnockoutsHard knockout version Metric cable entry knockouts at the top, bottom and back plate Hard metric cable entry knockouts
Enclosure colorBlack (RAL 9005) Light gray, Operator (RAL 7035) Light gray, Cover (RAL 7035)
Mounting weight capacity - max0.7 kg
Environmental resistanceNot resistant to benzene Resistant against gasoline Not resistant to alkalis Not resistant to Mineral oil Resistant against alcohol Resistant against benzene Resistant against salt solutions Resistant against alkalis Resistant against greases Resistant against mineral oil Chemical resistant (Base, Cover) Chemical resistant (Push-through membrane (CI-K1/CI-K2) and sealing material) Partly resistant to greases Resistant against acids (< 10%) Partly resistant to acids (> 10%) Partly resistant to alcohol Partly resistant to benzene
Cover materialGlass-fiber reinforced polycarbonate
Flammability characteristics650 °C/1 mm thick (push-through membrane and seal material) to VDE 0471 Part 2) 960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2)
Impact resistanceIK06 (according to EN 50102)
Track resistanceCTI 175 (base, to IEC 60112) CTI 175 (cover, to IEC 60112)
Water consumption0.29 % (According to DIN EN ISO 62)
