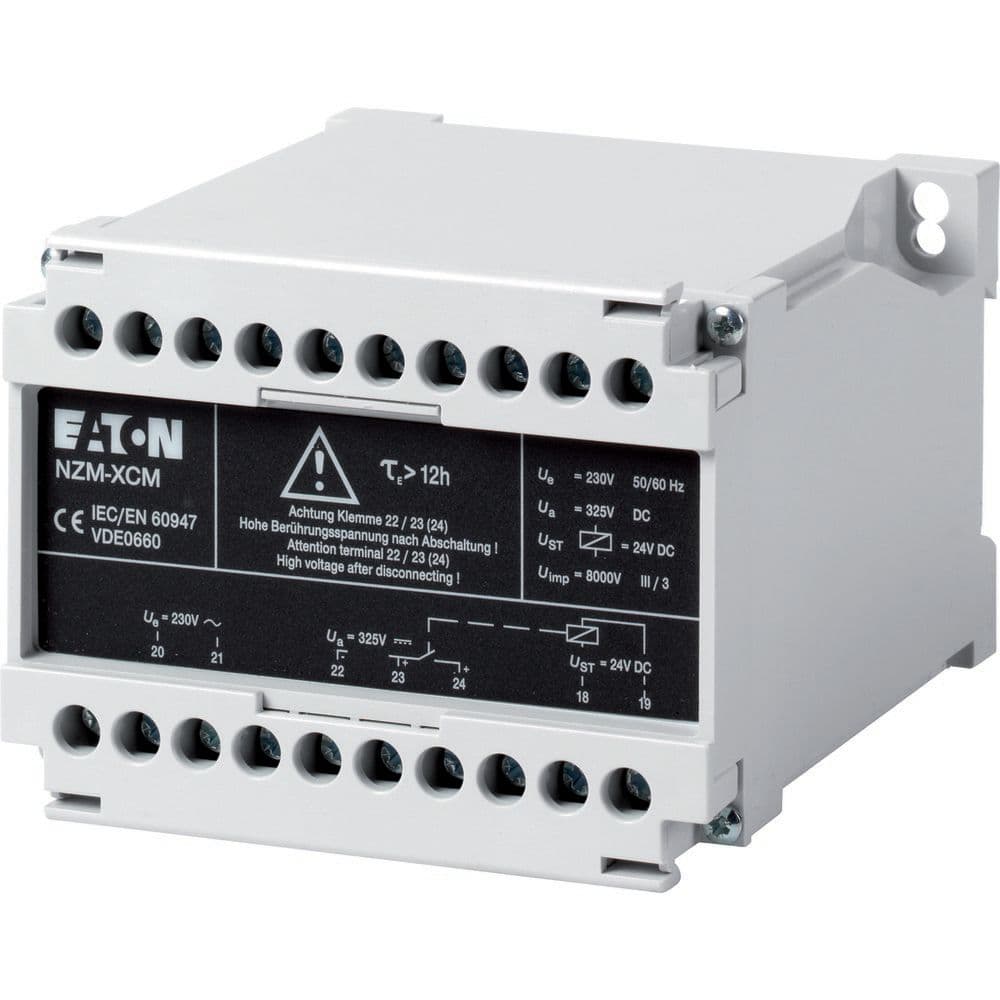

Eaton Moeller series NZM Shunt release

Name: Eaton Moeller series NZM Shunt release
Brand: Eaton
SKU: 229413

رقم القطعة: 229413

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

Special features	Capacitor unit 230 V 50/60 Hz in conjunction with NZM...-XA208-250 AC/DC shunt releaseEnclosure: degree of protection IP20not UL/CSA approvedEnables the safe use of circuit-breakers as mesh network circuit-breakers in the range from 0 – 110 % Un with constant switch-off time of 40 ms.If the mains voltage is absent, the installed capacitor supplies power for actuating the shunt release for at least 12 hours.The configuration of the capacitor unit is undertaken independently of the circuit-breaker.Connect capacitor unit to the supply side!Engineering Guidelines: Connect a standard auxiliary contact as N/O in series with the shunt release!Standard auxiliary contact not included as standard.
Product Name	Eaton Moeller series NZM Shunt release
Catalog Number	229413
Model Code	NZM-XCM
EAN	4015082294137
Product Length/Depth	100 mm
Product Height	114 mm
Product Width	74 mm
Product Weight	0.48 kg
Compliances	IEC RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.229413.html
Suitable for	Off-load switch
Used with	NZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4) NZM1(-4), N(S)1(-4) NZM4(-4), N(S)4(-4)
Type	AccessoryShunt releaseShunt release for capacitor unit
Frame	NZM1/2/3/4
