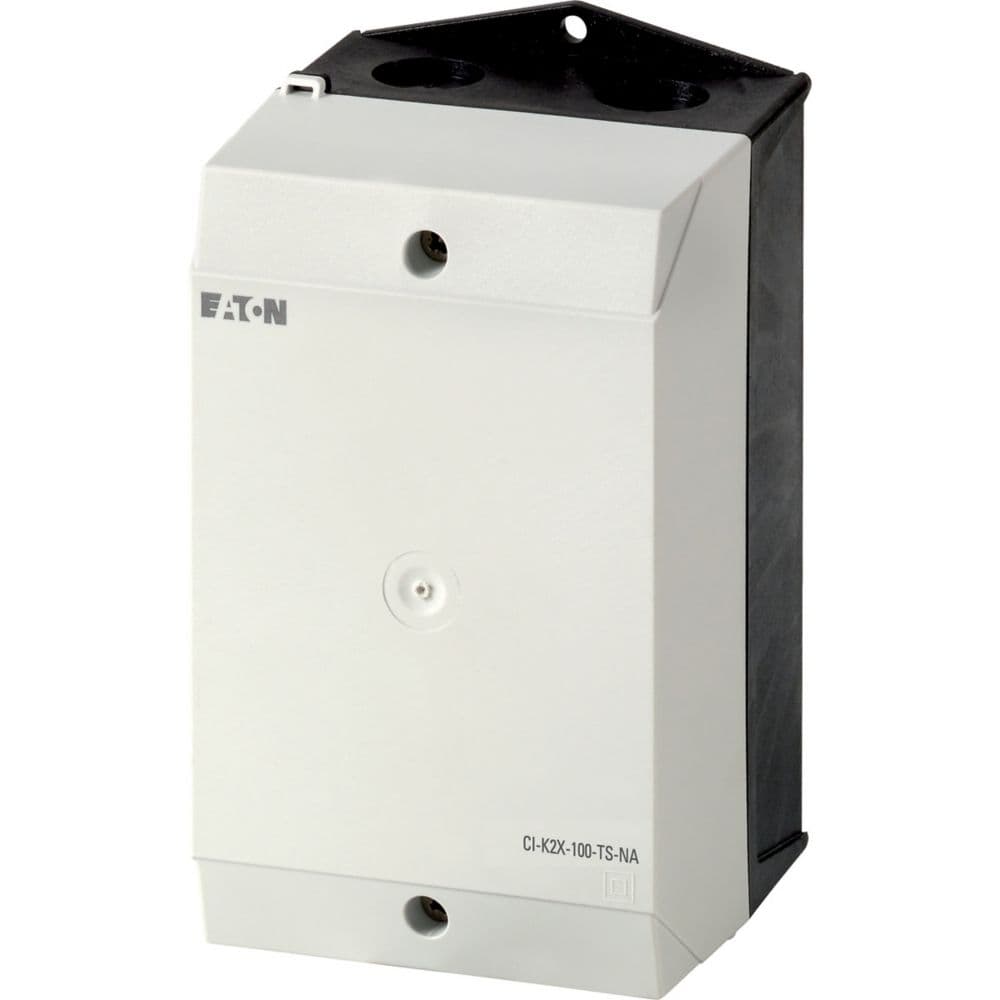

Eaton Moeller® series CI-K Insulated enclosure

Eaton

Eaton Moeller® series CI-K Insulated enclosure

رقم القطعة: 231220

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series CI-K Insulated enclosure

المواصفات

Ambient operating temperature - max70 °C
Ambient operating temperature - min-25 °C
Product NameEaton Moeller® series CI-K Insulated enclosure
Catalog Number231220
Model CodeCI-K2X-100-TS-NA
EAN4015082312206
Product Length/Depth100 mm
Product Height180 mm
Product Width100 mm
Product Weight0.32 kg
CertificationsCSA-C22.2 No. 94 UL File No.: E54120 IEC/EN 60947-3 CSA File No.: 012528 CSA-C22.2 No. 14-05 UL CE UL Category Control No.: MITW2 CSA Class No.: 3211-07 UL 508 CSA
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.231220.html
Catalog NotesApproved for UL, CSA
TypeBasic enclosure
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationPlease enquire
10.2.5 LiftingNot applicable.
10.2.6 Mechanical impactMeets the product standard's requirements.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesMeets the product standard's requirements.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockIs the panel builder's responsibility.
10.6 Incorporation of switching devices and componentsIs the panel builder's responsibility.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialMeets the product standard's requirements.
Degree of protectionNEMA 13 IP65
Enclosure materialPlastic
Surface treatmentResistant to corrosion
Mounting depth73 mm
ModelSurface mounting
Fitted with:DIN-rail
Temperature resistance-40 - 80 °C (gasket) -40 - 120 °C (enclosure)
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss12.5 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
Product categoryBasic enclosures
Knockouts4 x ½ inch knockouts
Degree of protection (front side)IP65
Enclosure colorLight gray, Operator (RAL 7035) Black (RAL 9005)
