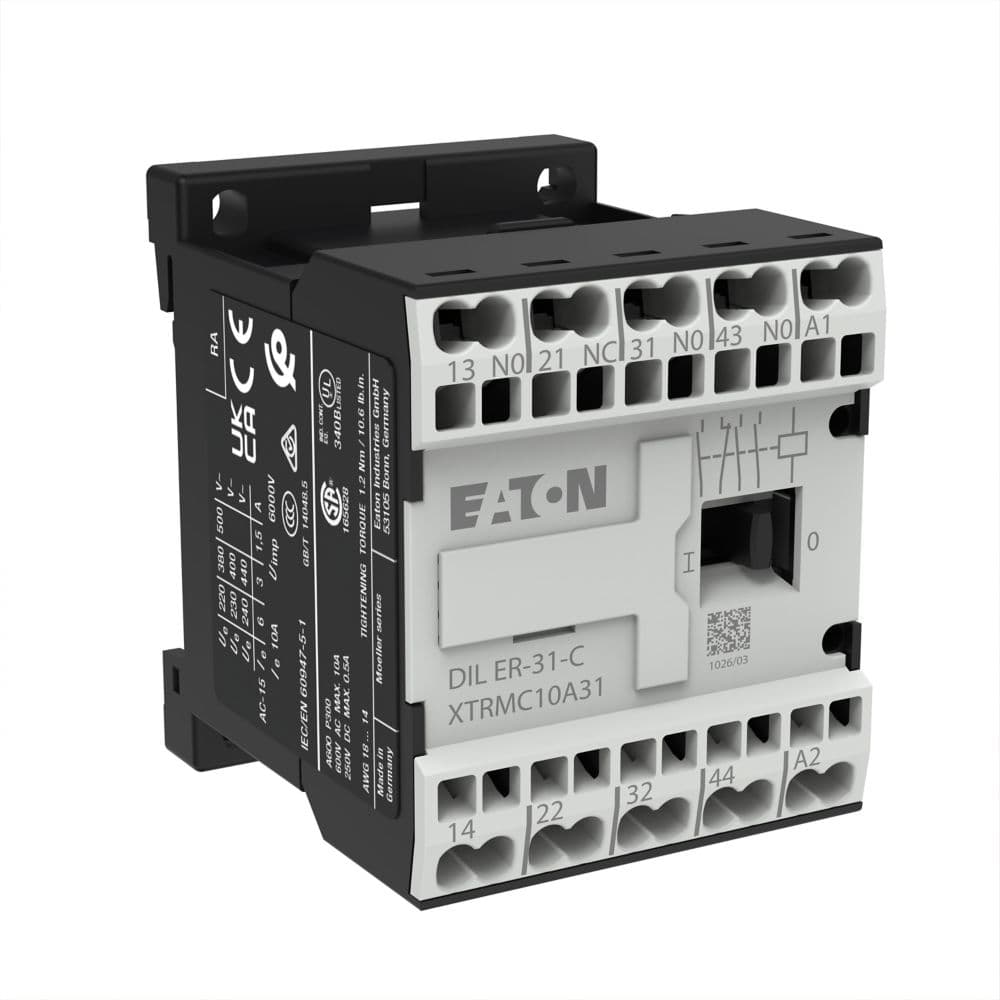

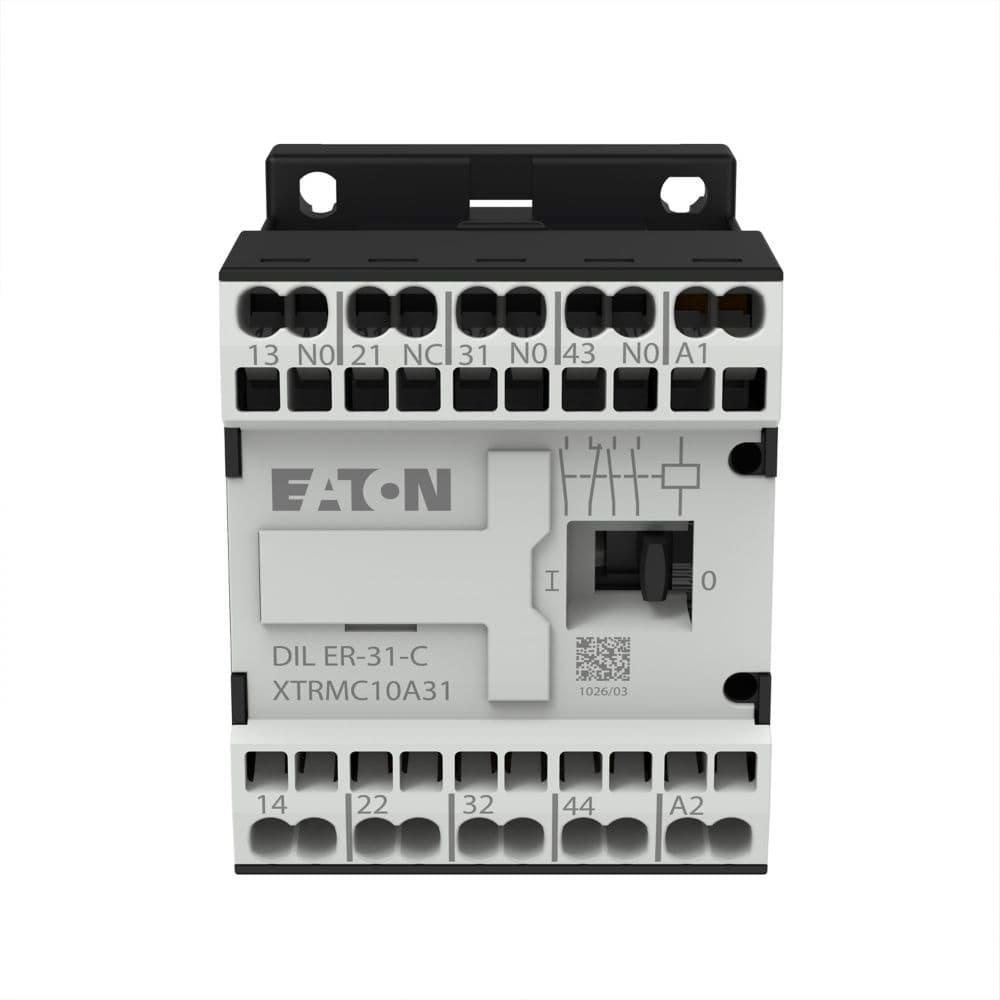

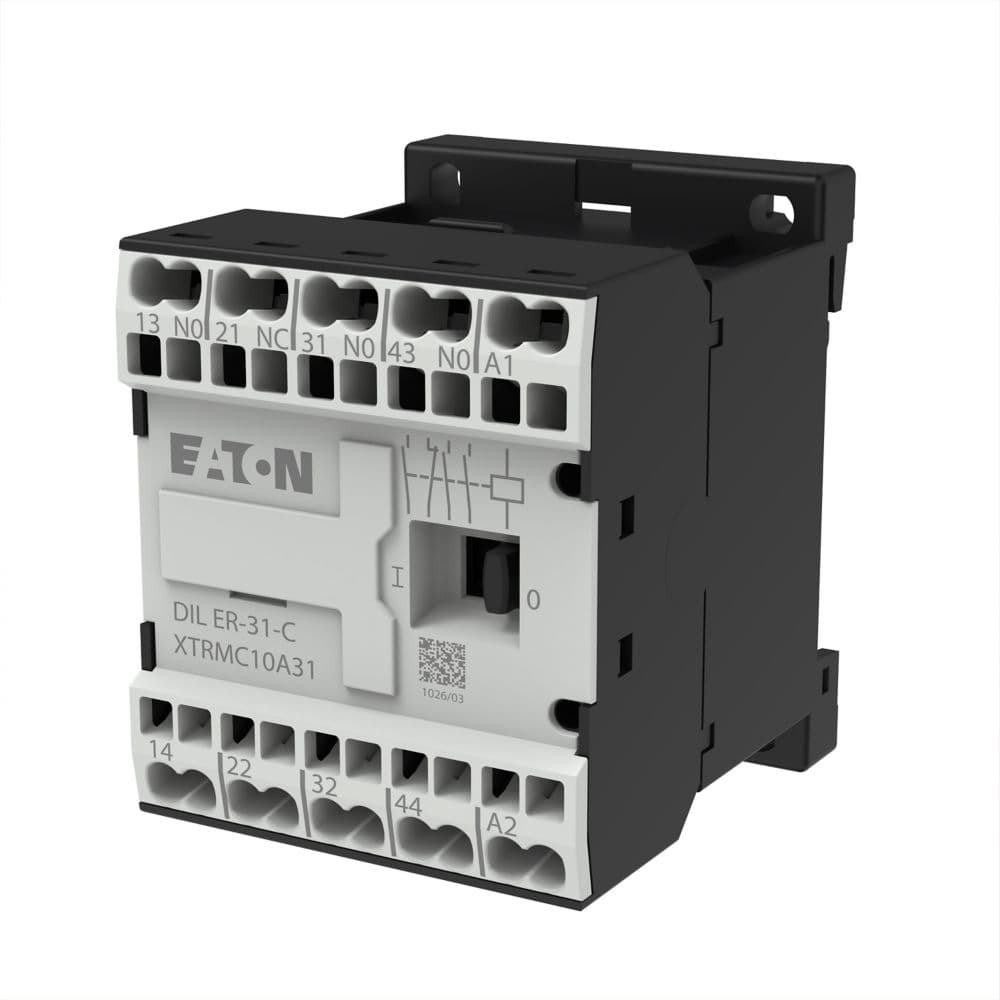

Eaton Moeller® series DILER Control relay

Eaton

Eaton Moeller® series DILER Control relay

رقم القطعة: 231821

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILER Control relay

المواصفات

Ambient operating temperature (enclosed) - max40 °C
Ambient operating temperature (enclosed) - min25 °C
Ambient operating temperature - max50 °C
Ambient operating temperature - min-25 °C
Climatic proofingDamp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Product NameEaton Moeller® series DILER Control relay
Catalog Number231821
Model CodeDILER-31-C(380V50HZ,440V60HZ)
EAN4015082318215
Product Length/Depth52 mm
Product Height58 mm
Product Width45 mm
Product Weight0.17 kg
CertificationsEN 60947-5-1 IEC/EN 60947 UL File No.: E29184 CSA File No.: 012528 CSA-C22.2 No. 14-05 UL CSA IEC/EN 60947-4-1 UL 508 VDE 0660 UL Category Control No.: NKCR CE CSA Class No.: 3211-03
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.231821.html
