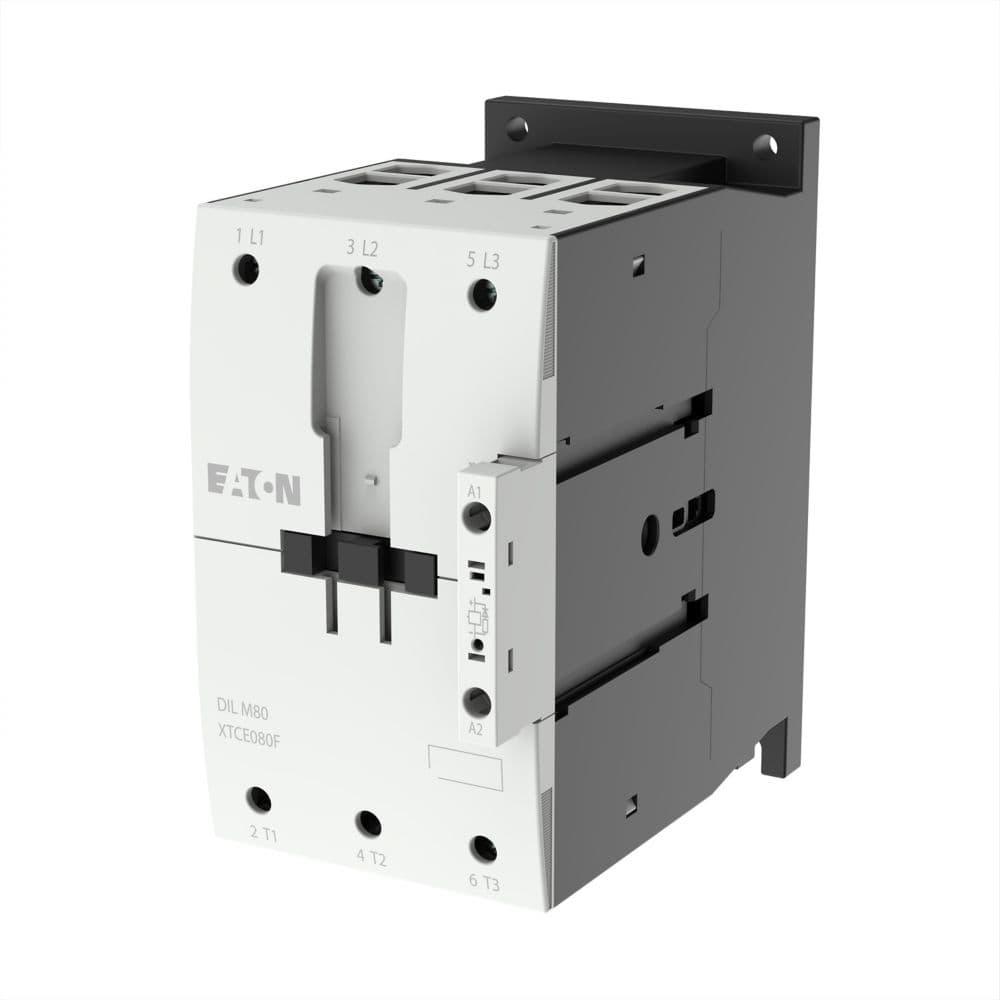

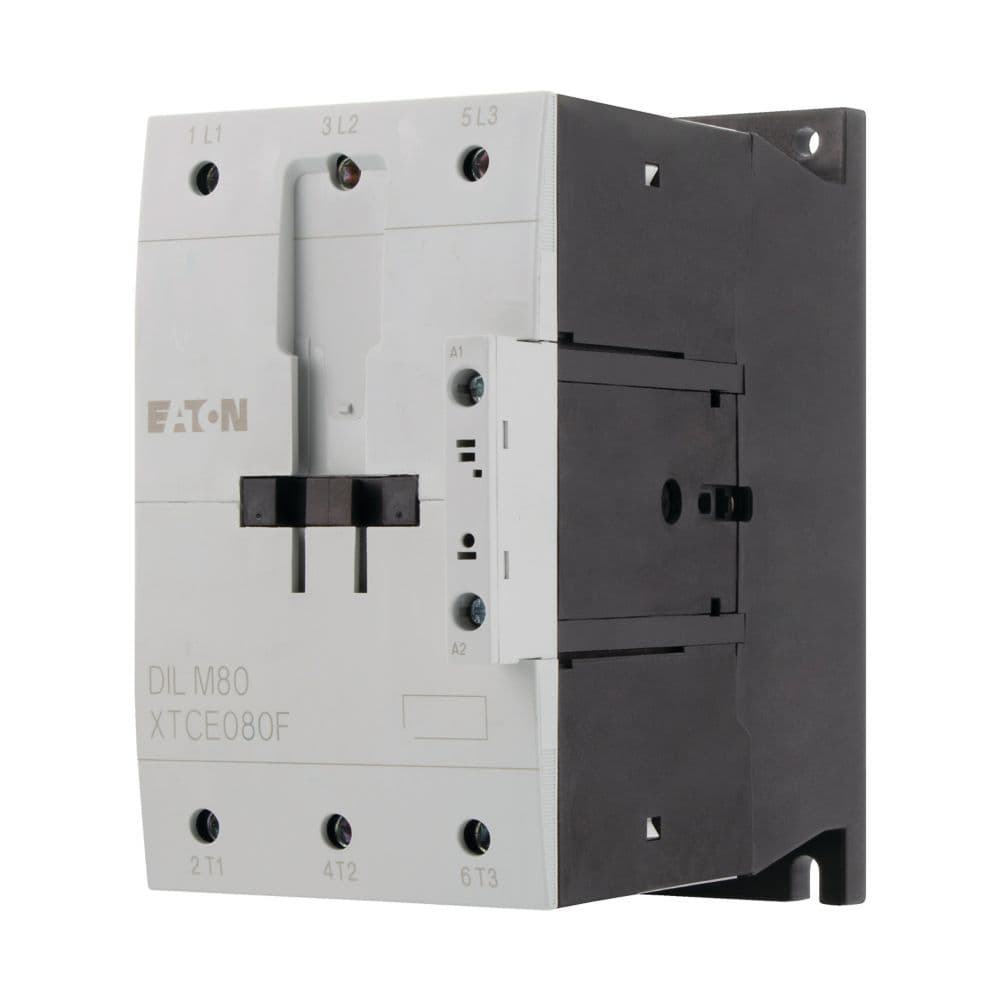

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 239457

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number239457
Model CodeDILM80-22(230V50/60HZ)
EAN4015082394578
Product Length/Depth175 mm
Product Height170 mm
Product Width90 mm
Product Weight2.22 kg
CompliancesCE Marked
CertificationsCSA Std. C22.2 No. 14-05 EN 60947-4-1 IEC 60947-4-1 UL 508 IEC/EN 60947 VDE 0660 UL File No.: E29096 UL Category Control No.: NLDX UL CSA CSA File No.: 012528 CSA-C22.2 No. 14-05 CSA Class No.: 2411-03, 3211-04 IEC/EN 60947-4-1 CE
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.239457.html
Catalog NotesContacts according to EN 50012
Shock resistance5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms
