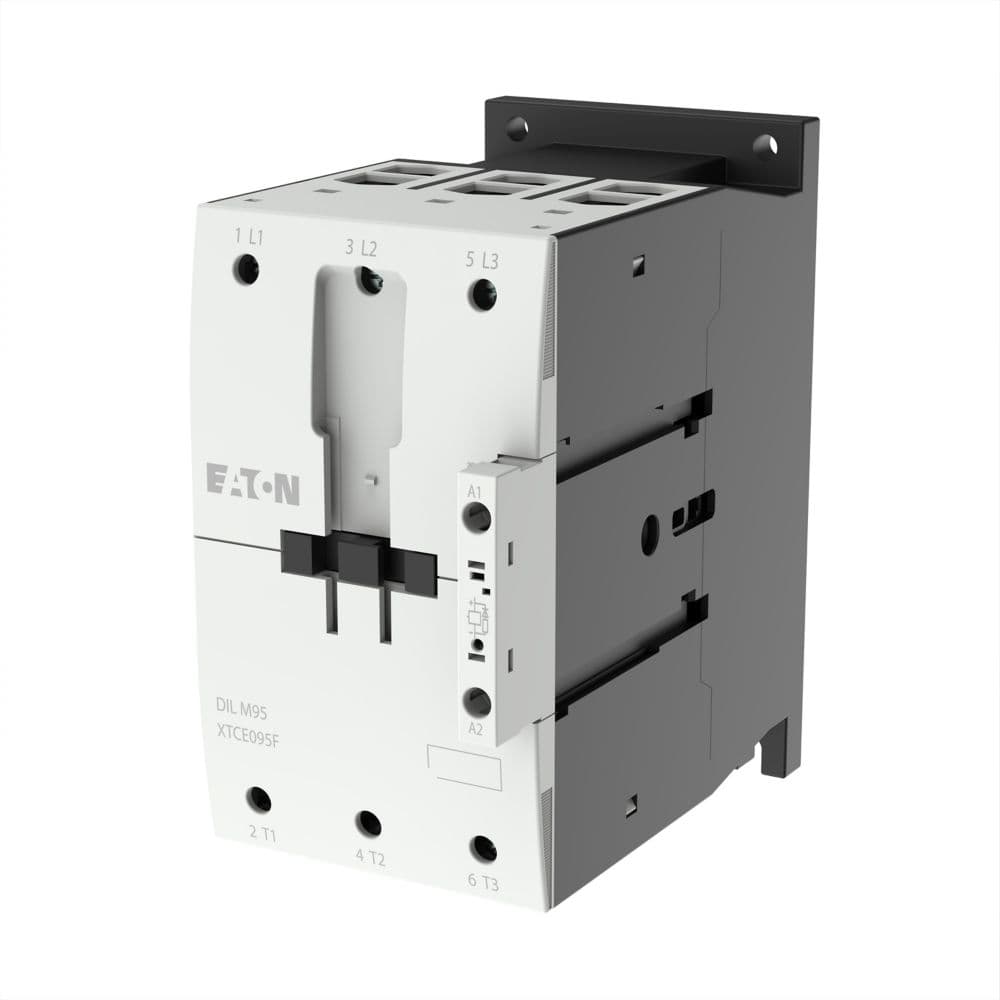

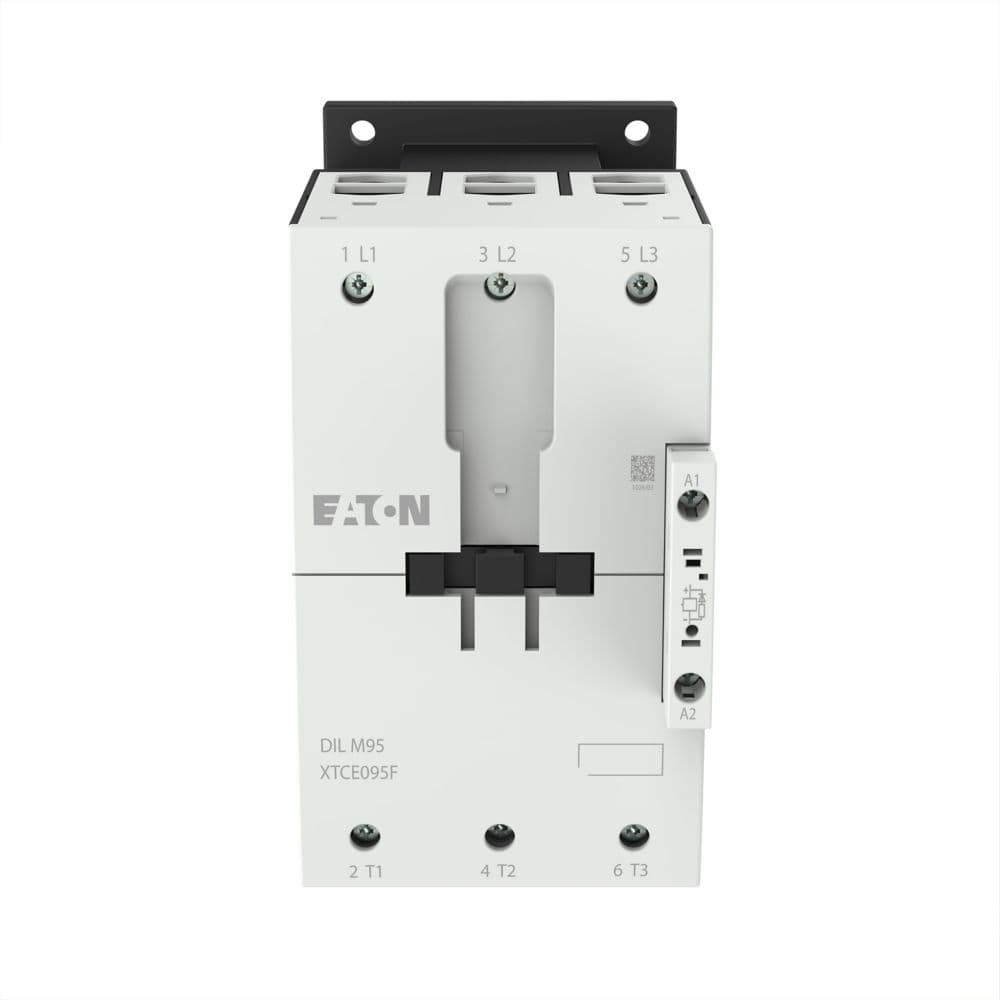

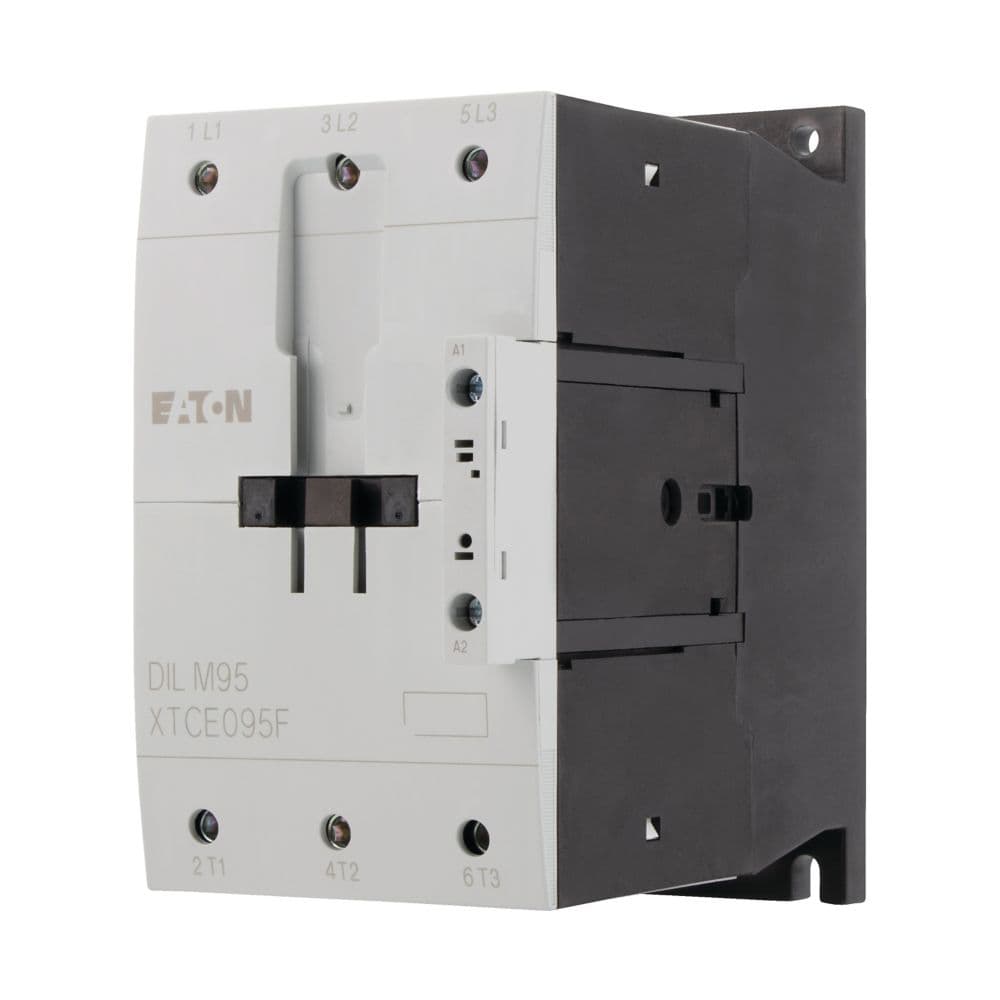

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 239509

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number239509
Model CodeDILM95(*V60HZ)
Product Length/Depth160 mm
Product Height170 mm
Product Width90 mm
Product Weight2.18 kg
CertificationsCSA-C22.2 No. 60947-4-1-14 CSA CSA Class No.: 2411-03, 3211-04 VDE 0660 UL UL 60947-4-1 UL File No.: E29096 CE CSA File No.: 012528 IEC/EN 60947-4-1 IEC/EN 60947 UL Category Control No.: NLDX
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.239509.html
Catalog NotesContacts according to EN 50012
Shock resistance10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
