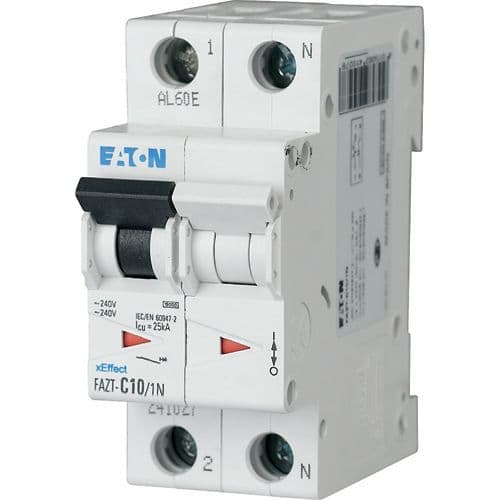

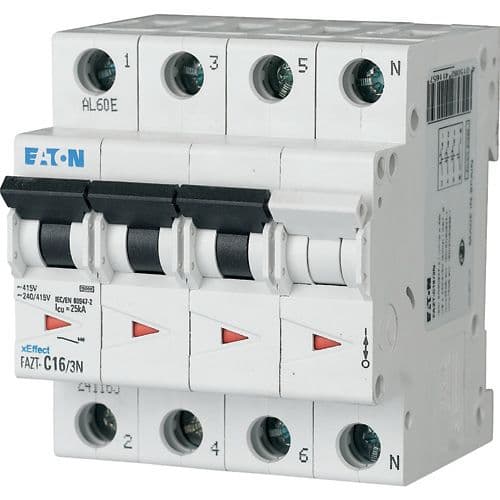

Eaton Moeller series xEffect - FAZ-T MCB

Eaton

Eaton Moeller series xEffect - FAZ-T MCB

رقم القطعة: 241070

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-T MCB

المواصفات

Ambient operating temperature - max75 °C
Ambient operating temperature - min-25 °C
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-T MCB
Catalog Number241070
Model CodeFAZT-B3/3N
EAN4015082410704
Product Length/Depth80 mm
Product Height75.5 mm
Product Width72 mm
Product Weight0.444 kg
CompliancesRoHS conform
CertificationsIEC/EN 60947-2 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.241070.html
Used withFAZ-T Miniature circuit breaker
FeaturesConcurrently switching N-neutral Additional equipment possible
TypeFAZ-TMiniature circuit breaker
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Degree of protectionIP20
Built-in depth70.5 mm
Width in number of modular spacings4
Mounting methodQuick attachment with 3 latch positions for top-hat rail IEC/EN 60715
Mounting positionAs required
Number of polesThree-pole + N
Amperage Rating3 A
Rated operational voltage (Ue) - max440 V
Rated operational current for specified heat dissipation (In)3 A
Frequency rating50 Hz / 60 Hz
Pollution degree2
Rated insulation voltage (Ui)440 V
Direction of incoming supplyAs required
Overvoltage categoryIII
Frame45 mm
Rated impulse withstand voltage (Uimp)4 kV
Terminal capacity1 mm² - 25 mm²
Lifespan, mechanical10000 operations
Voltage typeAC
Lifespan, electrical4000 operations
Connectable conductor cross section (multi-wired) - max25 mm²
Connectable conductor cross section (multi-wired) - min1 mm²
Connectable conductor cross section (solid-core) - max25 mm²
Connectable conductor cross section (solid-core) - min1 mm²
Mounting width17.5 mm
Heat dissipation per pole, current-dependent0 W
Equipment heat dissipation, current-dependent7.8 W
ApplicationSwitchgear for industrial and advanced commercial applicationsxEffect - Switchgear for industrial and advanced commercial applications
Static heat dissipation, non-current-dependent0 W
Heat dissipation capacity0 W
Terminal protectionFinger and hand touch safe, DGUV VS3, EN 50274
Enclosure width80 mm
Current limiting class3
Frequency rating - max60 Hz
Frequency rating - min50 Hz
Tripping characteristicB
Number of poles (protected)3
Number of poles (total)4
Release characteristicB
Busbar material thickness0.8 mm (except N 0.5 SU)
Terminals (top and bottom)Twin-purpose terminals
Voltage rating (IEC/EN 60947-2)415 V
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V25 kA
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V25 kA
Rated switching capacity (IEC/EN 60947-2)25 kA
Power loss7.8 W
Voltage rating (IEC/EN 60898-1)400 VAC
Mounting width per pole17.5 mm
Operational voltage (IEC/EN 60947-2) - max440 VAC
Operational voltage at DC (EC/EN 60947-2) - max60 VDC
Rated service short-circuit breaking capacity (IEC/EN 60898-1) - Ics7.5 kA
Rated service short-circuit breaking capacity (IEC/EN 60947-2) - Ics7.5 kA
Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V15 kA
Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V15 kA
Rated switching capacity (IEC/EN 60898-1)15 kA
Rated switching capacity (IEC/EN 60947-2) at max voltage rating15 kA
Tightening torqueMax. 2.4 Nm
