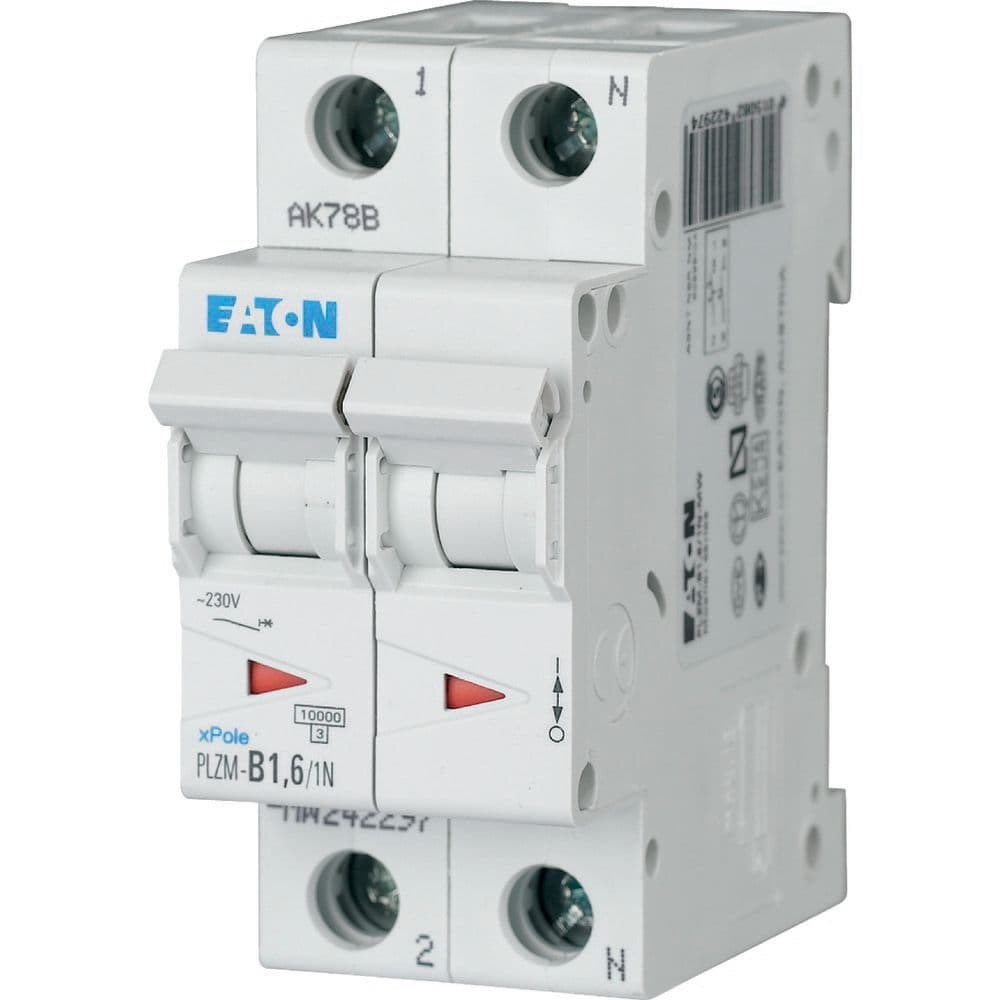

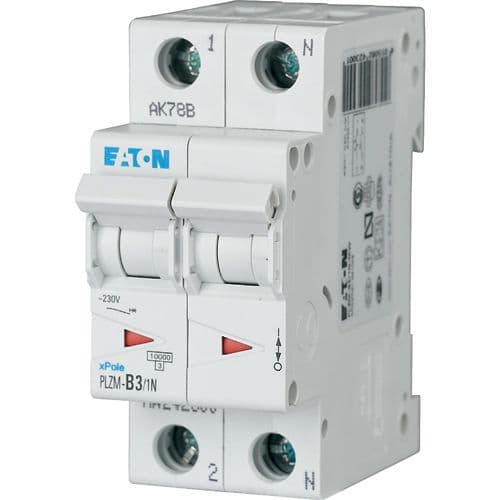

Eaton Moeller series xPole - PLZ6/M MCB

Name: Eaton Moeller series xPole - PLZ6/M MCB
Brand: Eaton
SKU: 242323

رقم القطعة: 242323

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xPole - PLZ6/M MCB

المواصفات

Ambient operating temperature - max	75 °C
Ambient operating temperature - min	-25 °C
Special features	Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product Name	Eaton Moeller series xPole - PLZ6/M MCB
Catalog Number	242323
Model Code	PLZM-C1,6/1N-MW
EAN	4015082423230
Product Length/Depth	85 mm
Product Height	73 mm
Product Width	35 mm
Product Weight	0.216 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.242323.html
Used with	PLZM Miniature circuit breaker
Features	Concurrently switching N-neutral Additional equipment possible
Type	Miniature circuit breakerPLZM
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20
Built-in depth	70.5 mm
Width in number of modular spacings	2
Number of poles	Single-pole + N
Amperage Rating	1.6 A
Rated operational voltage (Ue) - max	230 V
Rated operational current for specified heat dissipation (In)	1.6 A
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Overvoltage category	III
Rated impulse withstand voltage (Uimp)	4 kV
Voltage type	AC
Connectable conductor cross section (multi-wired) - max	25 mm²
Connectable conductor cross section (multi-wired) - min	1 mm²
Connectable conductor cross section (solid-core) - max	25 mm²
Connectable conductor cross section (solid-core) - min	1 mm²
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	1.7 W
Application	Switchgear for residential and commercial applicationsxPole - Switchgear for residential and commercial applications
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Current limiting class	3
Frequency rating - max	60 Hz
Frequency rating - min	50 Hz
Tripping characteristic	C
Number of poles (protected)	1
Number of poles (total)	2
Release characteristic	C
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V	0 kA
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V	0 kA
Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V	10 kA
Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V	10 kA
Rated switching capacity (IEC/EN 60898-1)	10 kA
