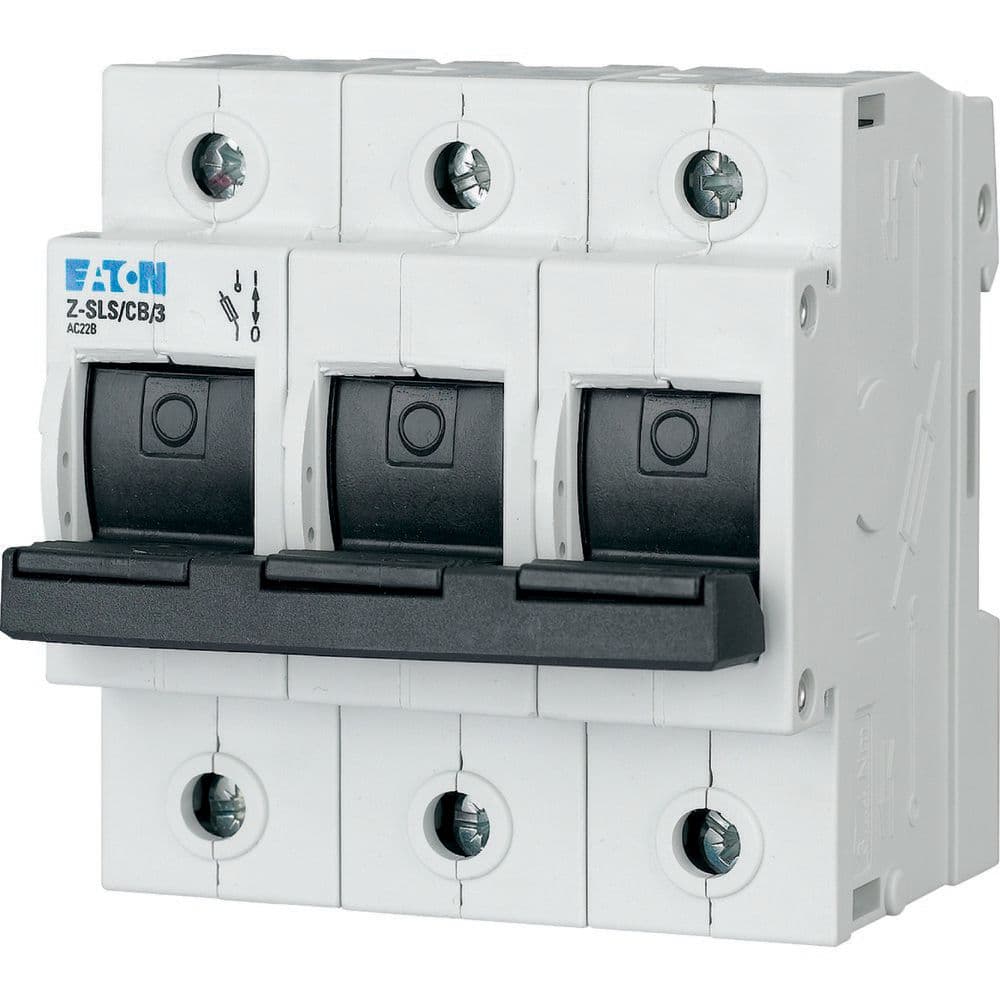

Eaton

Eaton Distribution parts

Name: Eaton Distribution parts
Brand: Eaton
SKU: 248249

رقم القطعة: 248249

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Distribution parts

المواصفات

Ambient operating temperature - max	40 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	55 °C
Ambient storage temperature - min	-25 °C
Functions	Fuse switch-disconnector Z-SLS/CB
Special features	Standard emptyWith flashing functionCurrent coding through locating inserts
Product Name	Eaton Distribution parts
Catalog Number	248249
Model Code	Z-SLS/CB/3
EAN	4015082482497
Product Length/Depth	79 mm
Product Height	85 mm
Product Width	80 mm
Product Weight	0.308 kg
Compliances	RoHS conform
Certifications	IEC/EN 60947-3 IEC/EN 60269-3 (DIN VDE 0636-3) IEC/EN 61439-3 (VDE 0660-600-3)
Source URL	https://www.eaton.com/gb/en-gb/skuPage.248249.html
Flammability characteristics (UL)	V0, glow-wire test 960 °C (UL94)
Type	Fuse material
Creepage resistance	CTI 600
Degree of protection	IP20
Mounting method	Quick attachment for top-hat rail IEC/EN 60715
Accessory/spare part type	Fuse-Links Z-D0./SE- Cartridge-ring adapter inserts D01 Z-D02-D01/PE Cartridge-ring adapter inserts D02 Z-D02/PE- Adapter Spring D01 Z-SLS/CB-HF
Number of poles	Three-pole
Amperage Rating	63 A
Rated operational voltage (Ue) - max	400 V
Rated uninterrupted current (Iu)	63 A
Construction size	D02
Fuse cartridge	D02: 20 - 63 A D01: 2 - 16 A, with sleeve locating insert and holding spring
Rated operation current (Ie)	63 A
Voltage rating	400 V AC
Rated operational current for specified heat dissipation (In)	63 A
Pollution degree	3
Rated insulation voltage (Ui)	800 V
Overvoltage category	IV
Frame	Standard front dimension: 45 mm
Rated impulse withstand voltage (Uimp)	6 kV
Mounting width	27 mm per pole (1.5 space units)
Heat dissipation per pole, current-dependent	1.6 W
Equipment heat dissipation, current-dependent	4.8 W
Static heat dissipation, non-current-dependent	0 W
Terminals	Lift terminals
Terminal capacity (solid cable)	1.5 mm² - 35 mm²
Stripping length (main cable)	13 mm
Rated short-circuit making capacity up to 690 V, 50/60 Hz	50 kA
Switching category	AC 22 B
Heat dissipation per contact with fuse link at Ie	7.1 W
Rated uninterrupted current (Iu) at max. cross section	63 A
Permitted power loss per fuse link - max	5.5 W
