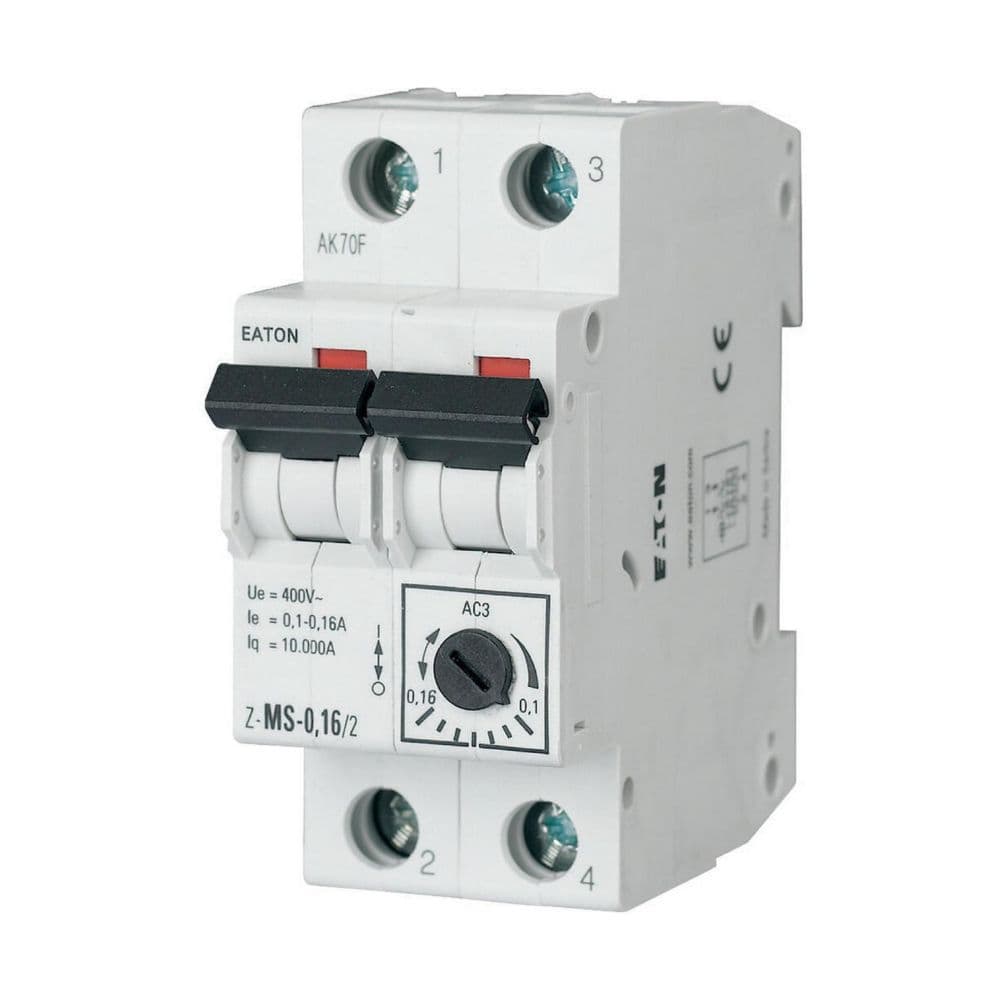

Eaton Distribution parts

Name: Eaton Distribution parts
Brand: Eaton
SKU: 248393

رقم القطعة: 248393

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Distribution parts

Ambient operating temperature - max	50 °C
Ambient operating temperature - min	-25 °C
Product Name	Eaton Distribution parts
Catalog Number	248393
Model Code	Z-MS-1,0/2
EAN	4015082483937
Product Length/Depth	80 mm
Product Height	75 mm
Product Width	36 mm
Product Weight	0.244 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.248393.html
Actuator type	Rocker lever
Degree of protection	IP20
Fitted with:	Thermal protection
Number of poles	Two-pole
Rated uninterrupted current (Iu)	1 A
Rated operational current for specified heat dissipation (In)	1 A
Electrical connection type of main circuit	Screw connection
Heat dissipation per pole, current-dependent	2.15 W
Equipment heat dissipation, current-dependent	4.3 W
Device construction	Complete device in housing
Rated operating voltage (Ue) - max	400 V
Rated operating voltage (Ue) - min	400 V
Switch off technique	Magnetic
Adjustment range short-term delayed short-circuit release - min	10 A
Adjustment range undelayed short-circuit release - max	13 A
Adjustment range undelayed short-circuit release - min	10 A
Overload release current setting - max	1 A
Overload release current setting - min	0.63 A
Rated operating power at AC-3, 400 V	0.25 kW
Rated short-circuit breaking capacity at 400 V AC	10 kA
