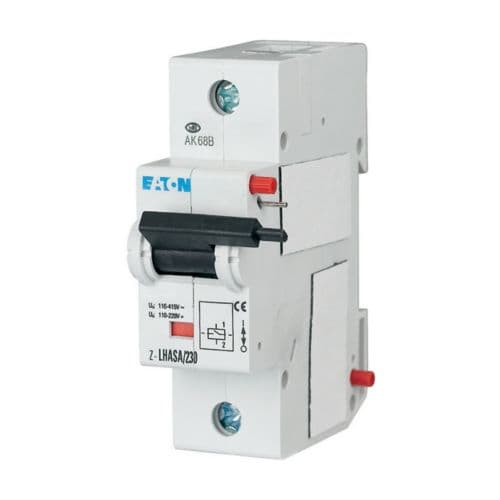

Eaton Shunt trip

Eaton

Eaton Shunt trip

رقم القطعة: 248442

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Shunt trip

المواصفات

Ambient operating temperature - max40 °C
Ambient operating temperature - min-5 °C
FunctionsShunt release (for power circuit breaker)
Number of contacts (normally closed contacts)1
Number of contacts (normally open contacts)1
Product NameEaton Shunt trip
Catalog Number248442
Model CodeZ-LHASA/230
EAN4015082484422
Product Length/Depth80 mm
Product Height75 mm
Product Width39.1 mm
Product Weight0.158 kg
CompliancesRoHS conform
CertificationsEN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.248442.html
Used withShunt releases
TypeAccessoryAccessory for miniature circuit breaker
Mounting methodFor fitting on left to: AZ
Accessory/spare part typeShunt release
Rated operational voltage (Ue) - max230 V
Voltage typeAC
Number of contacts (change-over contacts)0
Number of switches (fault signal)0
Rated switch current2 A
ApplicationSwitchgear for industrial and advanced commercial applications
Additional equipment requiredShunt release (for power circuit breaker)
Assembly width1.5
Number of poles at main contact unit - max1
Device fittingMiniature circuit breaker (MCB)
Suitable for current of main contact unit - max2 A
