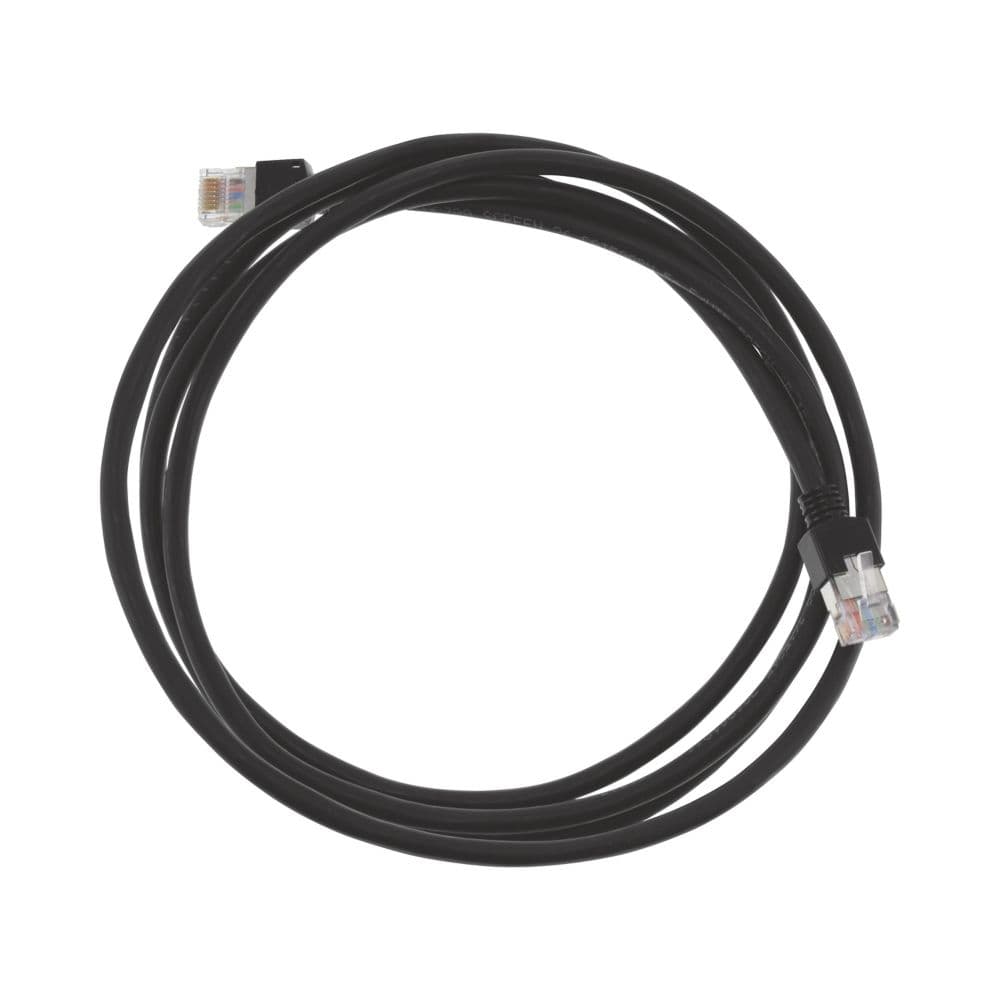

Eaton XT Accessory Ethernet cross cable

Eaton

Eaton XT Accessory Ethernet cross cable

رقم القطعة: 256487

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton XT Accessory Ethernet cross cable

المواصفات

Ambient operating temperature - max55 °C
Ambient operating temperature - min0 °C
FunctionsPLC - PC For transferring the user program from the PC
Product NameEaton XT Accessory Ethernet cross cable
Catalog Number256487
Model CodeXT-CAT5-X-2
EAN4015082564872
Product Length/Depth200 mm
Product Height20 mm
Product Width120 mm
Product Weight0.074 kg
CompliancesCE
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.256487.html
Suitable forInput board PLC Analogue signals Output card PLC Digital signals
Used withXC100 XC200 XC121 XC152
10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit ratingIs the panel builder's responsibility.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesMeets the product standard's requirements.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Number of polesEight-pole
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss0 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
Cable length2 m
Electrical connection type (box-sided)RJ-plug
Electrical connection type (field-sided)RJ-plug
SoftwareXSoft-Galileo/XSoft-EPAM
