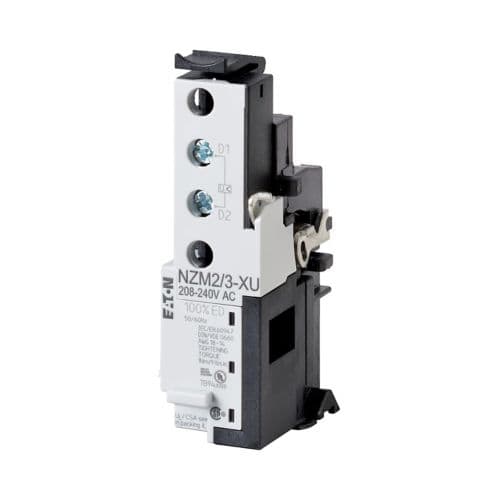

Eaton Moeller series NZM Undervoltage release

Name: Eaton Moeller series NZM Undervoltage release
Brand: Eaton
SKU: 259507

رقم القطعة: 259507

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

Special features	Non-delayed disconnection of NZM circuit-breaker or N switch-disconnector when the control voltage sinks below 35 – 70% US.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Undervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.
Product Name	Eaton Moeller series NZM Undervoltage release
Catalog Number	259507
Model Code	NZM2/3-XU12DC
EAN	4015082595074
Product Length/Depth	42 mm
Product Height	90 mm
Product Width	30 mm
Product Weight	0.064 kg
Compliances	UL/CSA IEC RoHS conform
Certifications	UL (Category Control Number DIHS) UL listed CSA (Class No. 1437-01) CE marking IEC60947 CSA certified UL489 UL (File No. E140305) CSA (File No. 22086) CSA-C22.2 No. 5-09
Source URL	https://www.eaton.com/gb/en-gb/skuPage.259507.html
Suitable for	Off-load switch
Used with	NZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
Type	Undervoltage release
Frame	NZM2/3
