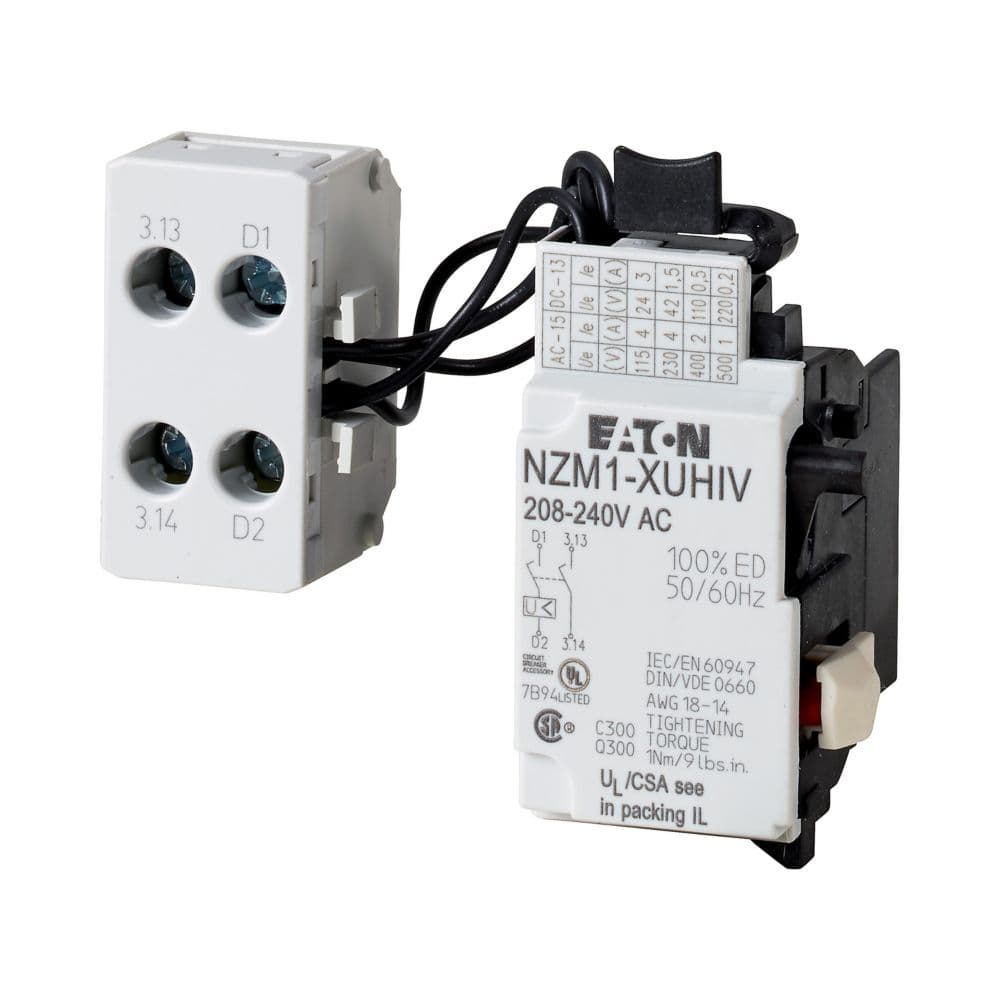

Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 259547

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresUndervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 msUndervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number259547
Model CodeNZM1-XUHIV24DC
EAN4015082595470
Product Length/Depth37 mm
Product Height66 mm
Product Width32 mm
Product Weight0.086 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsCE marking IEC60947 CSA certified UL (File No. E140305) UL489 CSA (File No. 22086) CSA-C22.2 No. 5-09 CSA (Class No. 1437-01) UL (Category Control Number DIHS) UL listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259547.html
Suitable forOff-load switch
Used withNZM1(-4), N(S)1(-4)
TypeUndervoltage release with early-make auxiliary contact
Fitted with:Two early-make auxiliary contacts
FrameNZM1
