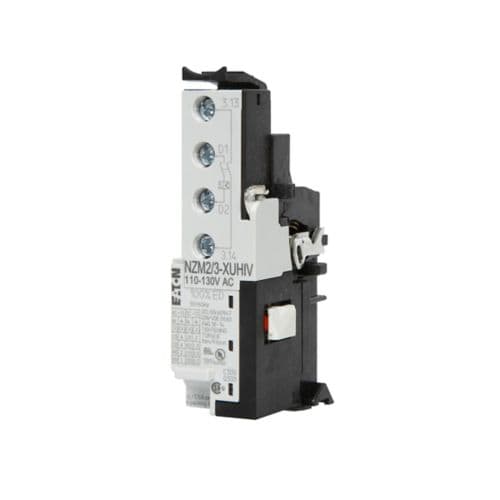

Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 259585

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

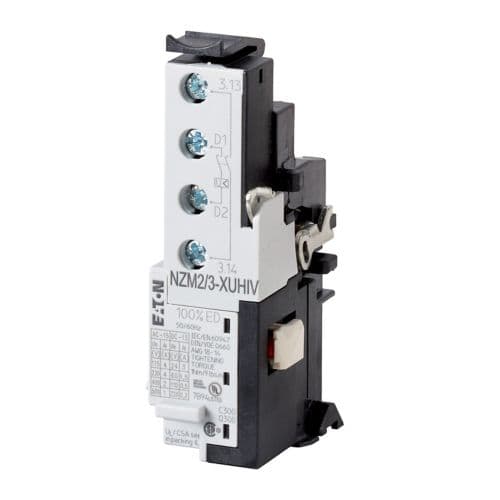

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresUndervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 msUndervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number259585
Model CodeNZM2/3-XUHIV48AC
EAN4015082595852
Product Length/Depth42 mm
Product Height90 mm
Product Width30 mm
Product Weight0.074 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCE marking UL listed CSA certified UL489 UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 UL (File No. E140305) IEC60947 CSA (Class No. 1437-01) CSA (File No. 22086)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259585.html
Suitable forOff-load switch
Used withNZM3(-4), N(S)3(-4) NZM2(-4), N(S)2(-4)
TypeUndervoltage release with early-make auxiliary contact
Fitted with:Two early-make auxiliary contacts
FrameNZM2/3
