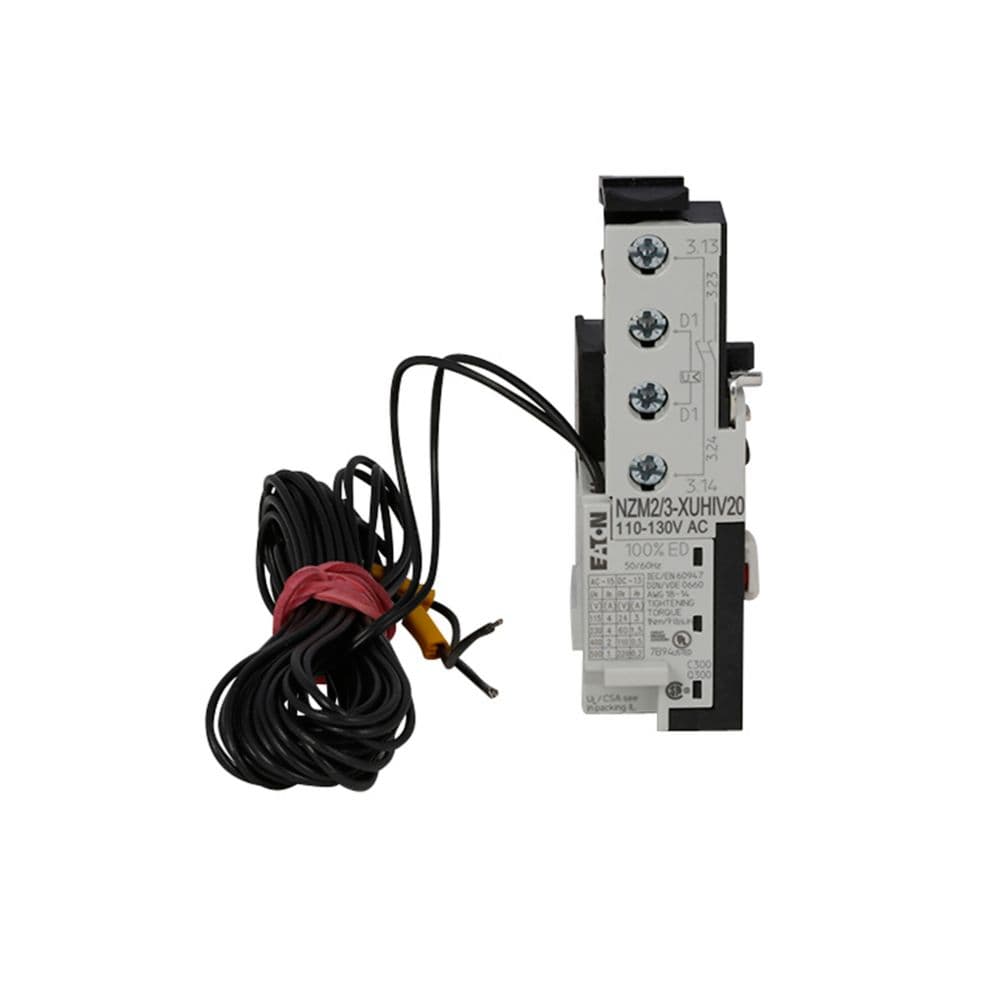

Eaton Moeller series NZM Undervoltage release

Name: Eaton Moeller series NZM Undervoltage release
Brand: Eaton
SKU: 259651

رقم القطعة: 259651

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

Special features	Undervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 msCannot be used in conjunction with NZM...-XR... remote operator.Undervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.
Product Name	Eaton Moeller series NZM Undervoltage release
Catalog Number	259651
Model Code	NZM2/3-XUHIV20208-240AC
EAN	4015082596514
Product Length/Depth	42 mm
Product Height	90 mm
Product Width	30 mm
Product Weight	0.135 kg
Compliances	UL/CSA IEC RoHS conform
Certifications	CSA certified CSA (Class No. 1437-01) CE marking IEC60947 UL489 UL (Category Control Number DIHS) UL listed CSA-C22.2 No. 5-09 UL (File No. E140305) CSA (File No. 22086)
Source URL	https://www.eaton.com/gb/en-gb/skuPage.259651.html
Suitable for	Off-load switch
Used with	NZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
Type	AccessoryUndervoltage release with early-make auxiliary contact
Fitted with:	Two separate early-make auxiliary contacts
Frame	NZM2/3
Connection	Screw
