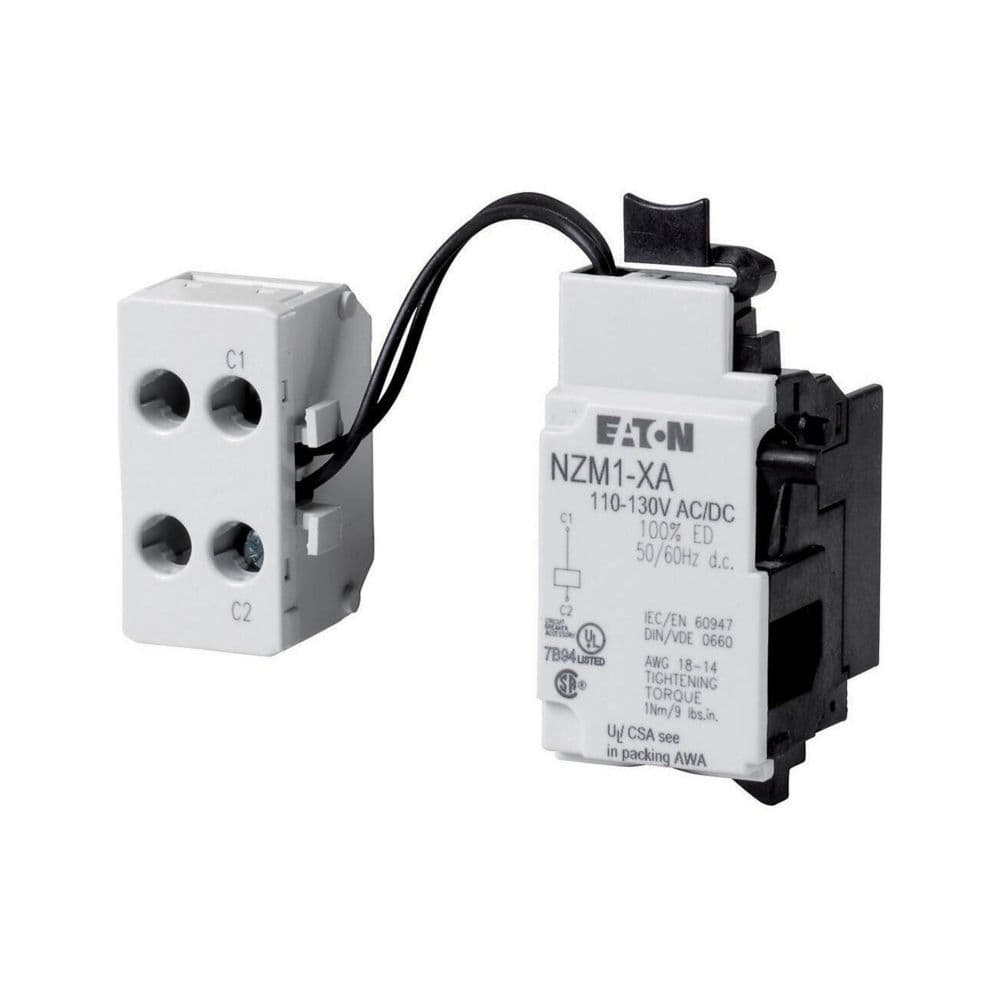

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 259726

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresSwitches are tripped by a voltage pulse or by the application of uninterrupted voltage.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product NameEaton Moeller series NZM Shunt release
Catalog Number259726
Model CodeNZM1-XA208-250AC/DC
EAN4015082597269
Product Length/Depth37 mm
Product Height66 mm
Product Width32 mm
Product Weight0.074 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsCE marking CSA (File No. 22086) UL (Category Control Number DIHS) UL listed CSA (Class No. 1437-01) UL489 UL (File No. E140305) IEC60947 CSA certified CSA-C22.2 No. 5-09
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259726.html
Suitable forOff-load switch
Used withNZM1(-4), N(S)1(-4)
TypeAccessoryShunt release
FrameNZM1
