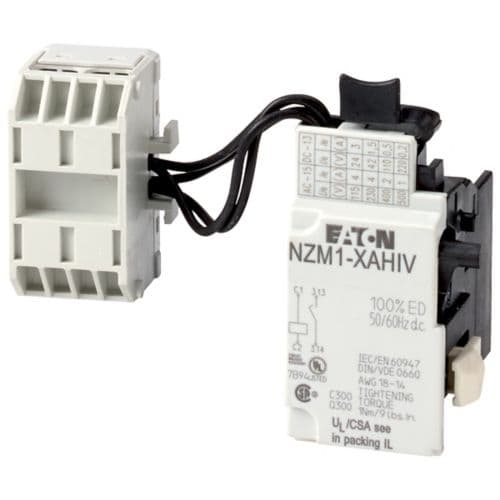

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 259772

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresCannot be used in conjunction with NZM...-XR... remote operator.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contact on switching on and off (manual operation): approx. 20 ms.Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product NameEaton Moeller series NZM Shunt release
Catalog Number259772
Model CodeNZM1-XAHIV12AC/DC
EAN4015082597726
Product Length/Depth37 mm
Product Height66 mm
Product Width32 mm
Product Weight0.044 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsIEC60947 UL489 CSA (File No. 22086) UL (File No. E140305) CSA-C22.2 No. 5-09 UL listed CSA certified CSA (Class No. 1437-01) UL (Category Control Number DIHS) CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259772.html
Suitable forOff-load switch
Used withNZM1(-4), N(S)1(-4)
TypeAccessoryShunt release
Fitted with:Early-make auxiliary contact
FrameNZM1
