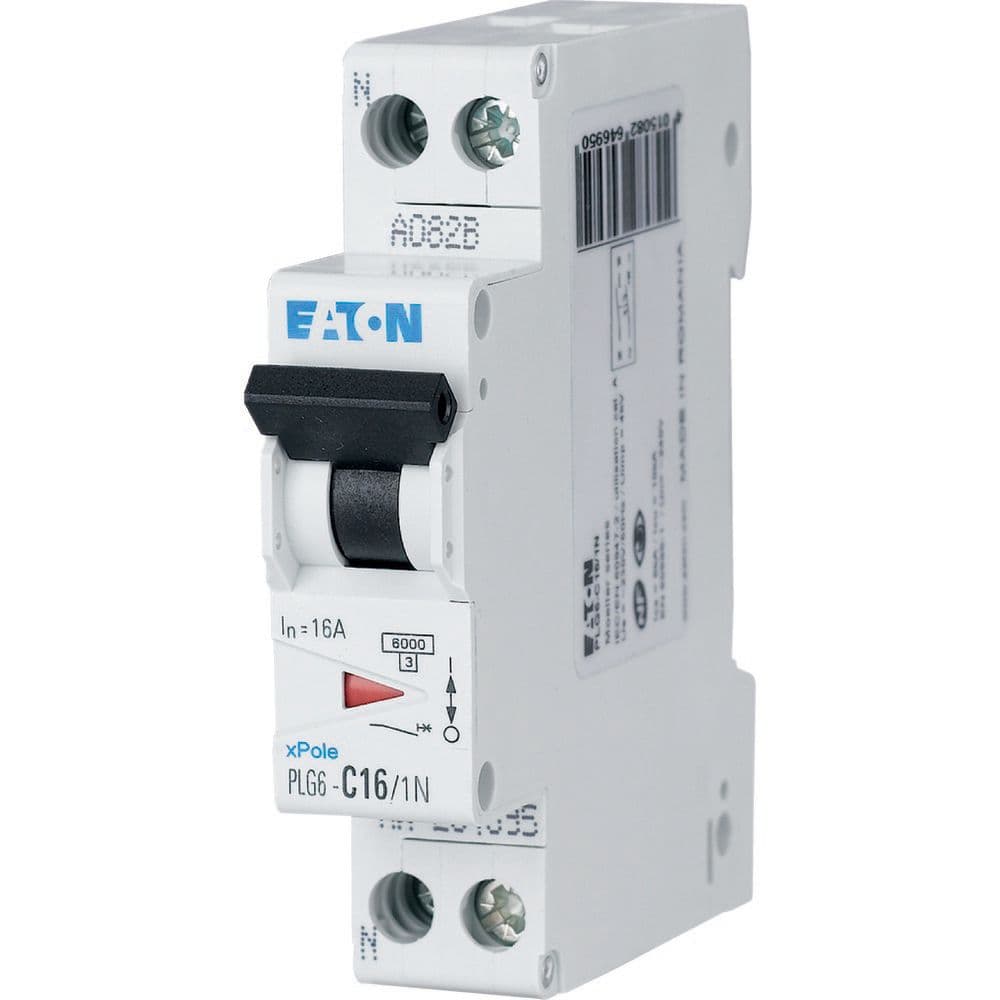

Eaton Moeller series xPole - PLG4/6 MCB

Name: Eaton Moeller series xPole - PLG4/6 MCB
Brand: Eaton
SKU: 264699

رقم القطعة: 264699

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xPole - PLG4/6 MCB

المواصفات

Ambient operating temperature - max	75 °C
Ambient operating temperature - min	-25 °C
Special features	Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product Name	Eaton Moeller series xPole - PLG4/6 MCB
Catalog Number	264699
Model Code	PLG6-C40/1N
EAN	4015082646998
Product Length/Depth	86 mm
Product Height	73 mm
Product Width	17.5 mm
Product Weight	0.13 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.264699.html
Features	Additional equipment possible Concurrently switching N-neutral
Type	Miniature circuit breakerPLG6
Degree of protection	IP20
Built-in depth	70.5 mm
Width in number of modular spacings	1
Number of poles	Single-pole + N
Amperage Rating	40 A
Rated operational voltage (Ue) - max	230 V
Rated operational current for specified heat dissipation (In)	40 A
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Overvoltage category	III
Rated impulse withstand voltage (Uimp)	4 kV
Voltage type	AC
Connectable conductor cross section (multi-wired) - max	25 mm²
Connectable conductor cross section (multi-wired) - min	1 mm²
Connectable conductor cross section (solid-core) - max	25 mm²
Connectable conductor cross section (solid-core) - min	1 mm²
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	7.4 W
Application	Switchgear for residential and commercial applicationsxPole - Switchgear for residential and commercial applications
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Current limiting class	3
Frequency rating - max	60 Hz
Frequency rating - min	50 Hz
Tripping characteristic	C
Number of poles (protected)	1
Number of poles (total)	2
Release characteristic	C
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V	10 kA
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V	10 kA
Power loss	6.5 W
Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V	6 kA
Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V	6 kA
Rated switching capacity (IEC/EN 60898-1)	6 kA
