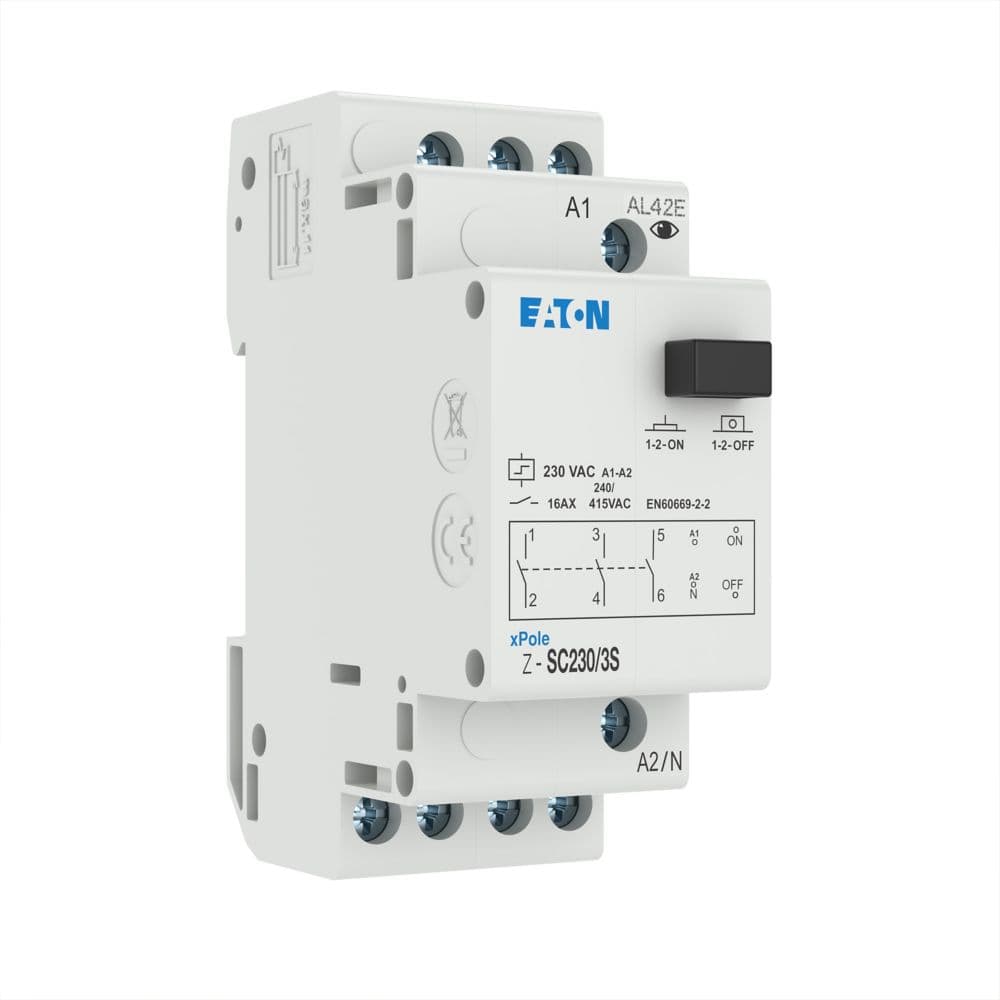

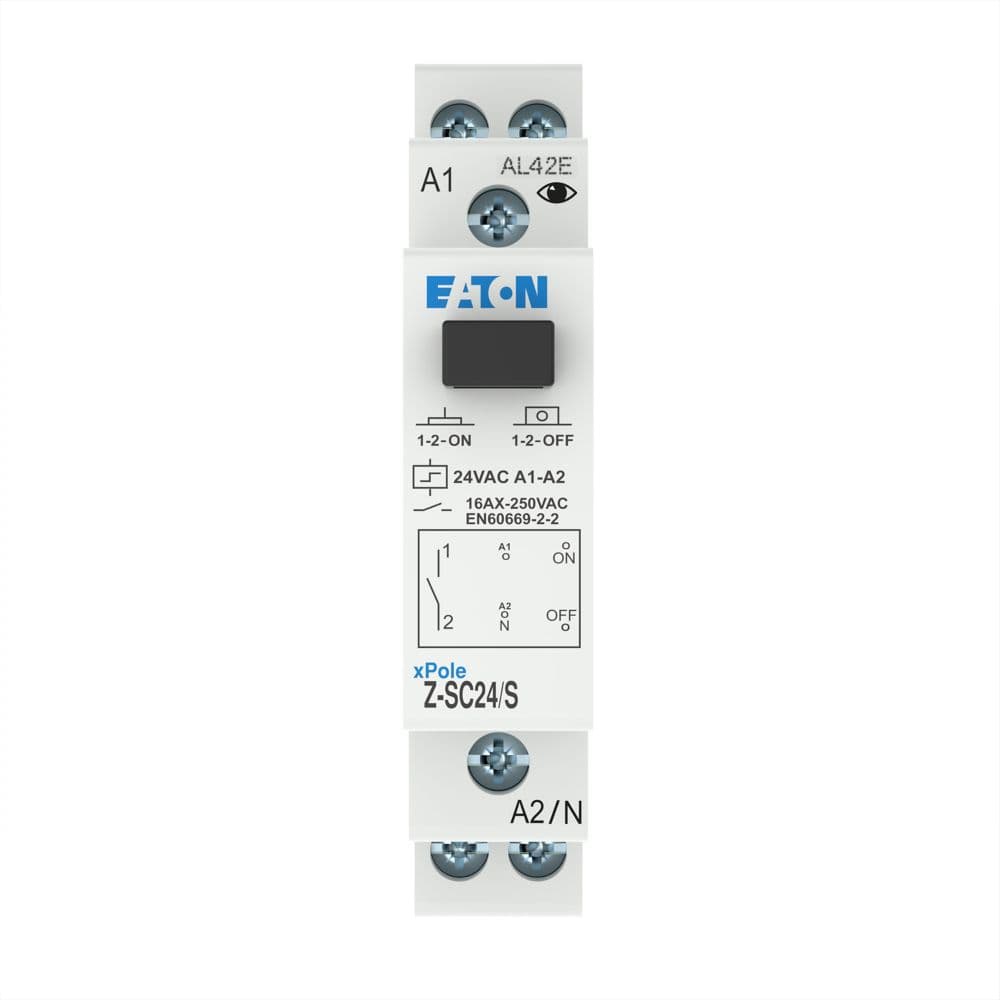

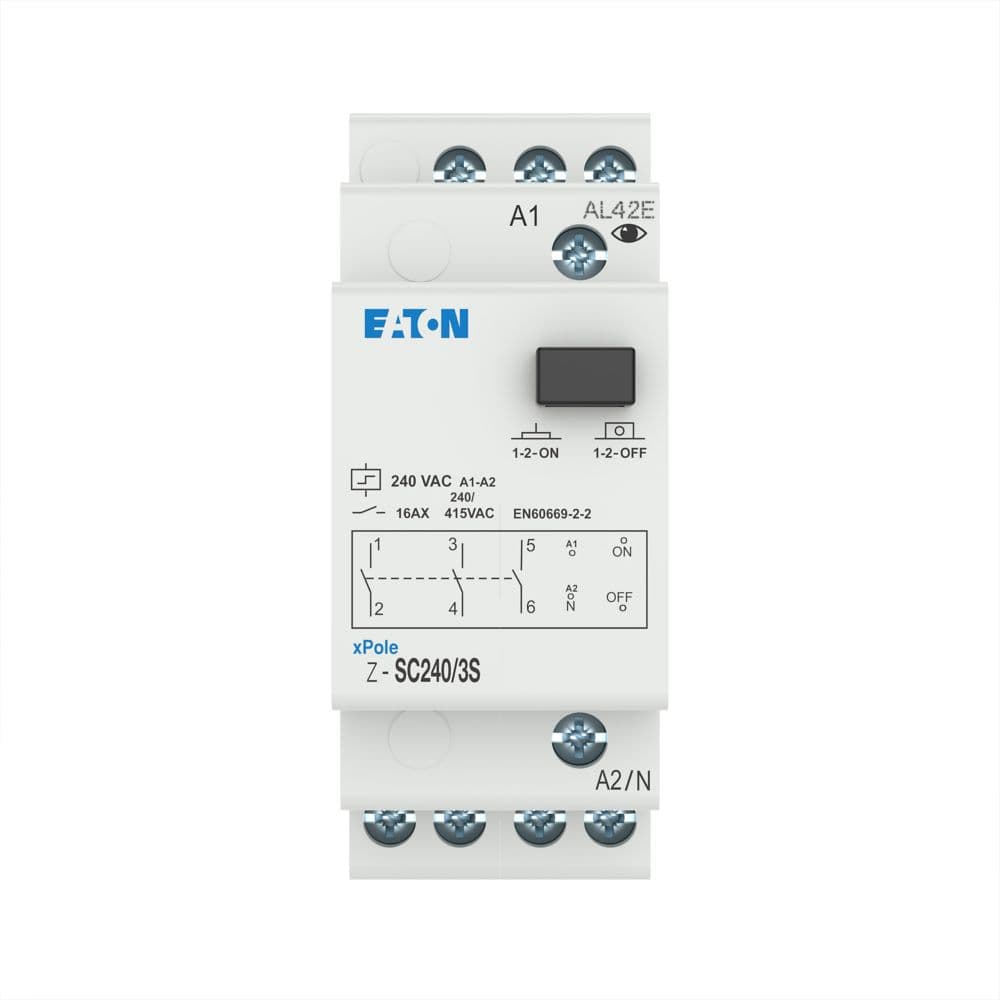

Eaton Z-SC Impulse relay

Name: Eaton Z-SC Impulse relay
Brand: Eaton
SKU: 265321

رقم القطعة: 265321

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Z-SC Impulse relay

Ambient operating temperature - max	45 °C
Ambient operating temperature - min	-20 °C
Functions	Mechanical for centralized control
Number of contacts (normally closed contacts)	0
Number of contacts (normally open contacts)	3
Product Name	Eaton Z-SC Impulse relay
Catalog Number	265321
Model Code	Z-SC230/3S
EAN	4015082653217
Product Length/Depth	80 mm
Product Height	70 mm
Product Width	35 mm
Product Weight	0.263 kg
Compliances	RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.265321.html
Built-in depth	60 mm
Width in number of modular spacings	2
Mounting method	DIN rail
Number of poles	Three-pole
Rated operational current for specified heat dissipation (In)	16 A
Voltage type	AC
Number of contacts (change-over contacts)	0
Operating mode	Manual operation possible
Control voltage 1 type	AC
Control voltage 1 - max	230 V
Control voltage 1 - min	230 V
Frequency control voltage 1 - max	60 Hz
Frequency control voltage 1 - min	50 Hz
Heat dissipation per pole, current-dependent	1.5 W
Incandescent lamp load - max	1980 W
Load fluorescent lamp - max	1020 VA
Load fluorescent lamp (duo circuit) - max	1820 VA
Load fluorescent lamp (parallel compensated) - max	1105 VA
Rated switch current	16 A
Equipment heat dissipation, current-dependent	4.5 W
Supply voltage - max	415 V
Supply voltage - min	24 V
Switching current (cos phi = 0.6) - max	24 A
Control voltage 2 type	AC
