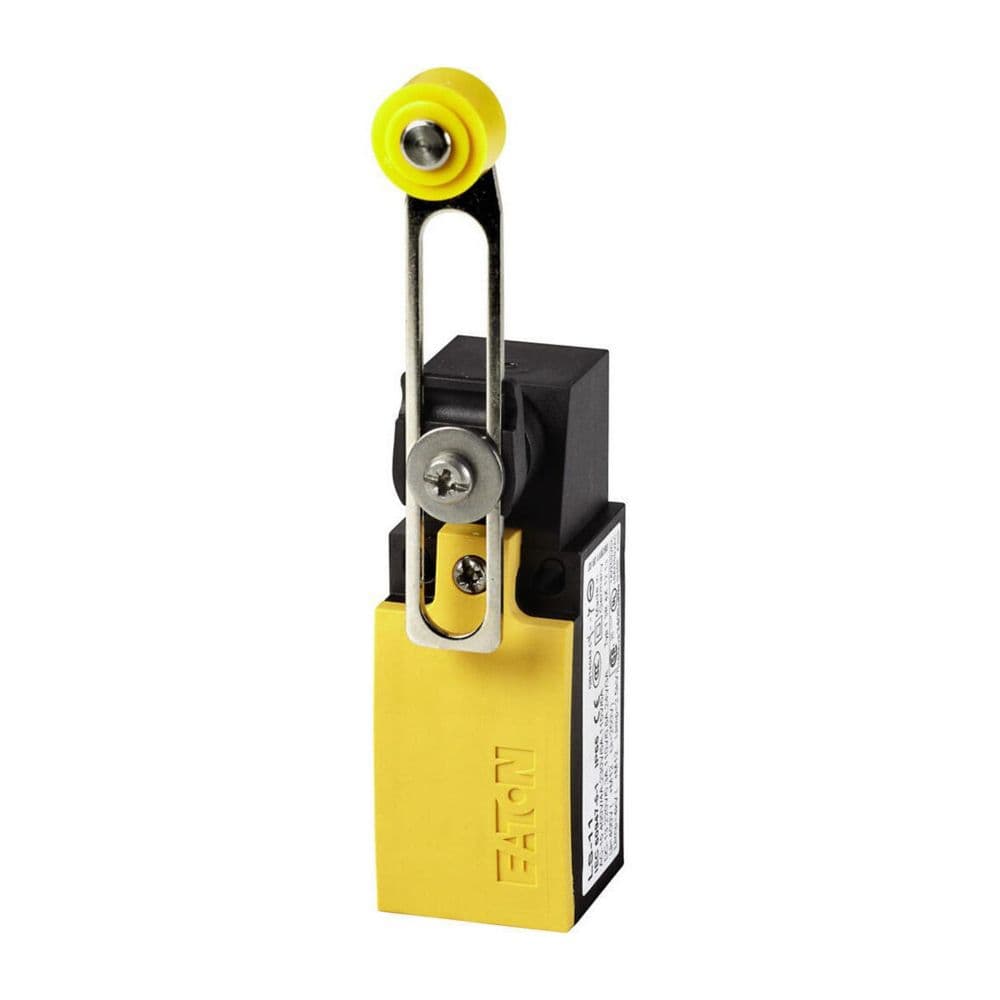

Eaton Moeller® series LS Position switch

Eaton

Eaton Moeller® series LS Position switch

رقم القطعة: 266119

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series LS Position switch

المواصفات

Product NameEaton Moeller® series LS Position switch
Catalog Number266119
Model CodeLS-11S/RLA
EAN4015082661199
Product Length/Depth33.5 mm
Product Height120 mm
Product Width31 mm
Product Weight0.085 kg
CertificationsIEC/EN 60947-5 UL 508 UL Category Control No.: NKCR CSA-C22.2 No. 14 UL CSA Class No.: 3211-03 CSA File No.: 012528 UL File No.: E29184 CE CSA IEC/EN 60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266119.html
Catalog NotesThe operating head can be rotated 90° to enable adaptation to the specified approach directionUsing the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.
Actuator typeAdjustable rotary lever
Actuating force at beginning/end of stroke1.0 N/8.0 N
Actuating torque of rotary drives0.2 Nm
Operating speedMax. 1.5 m/s (with DIN cam, mechanical actuation) For angle of actuation α = 30°, L = 125 mm
