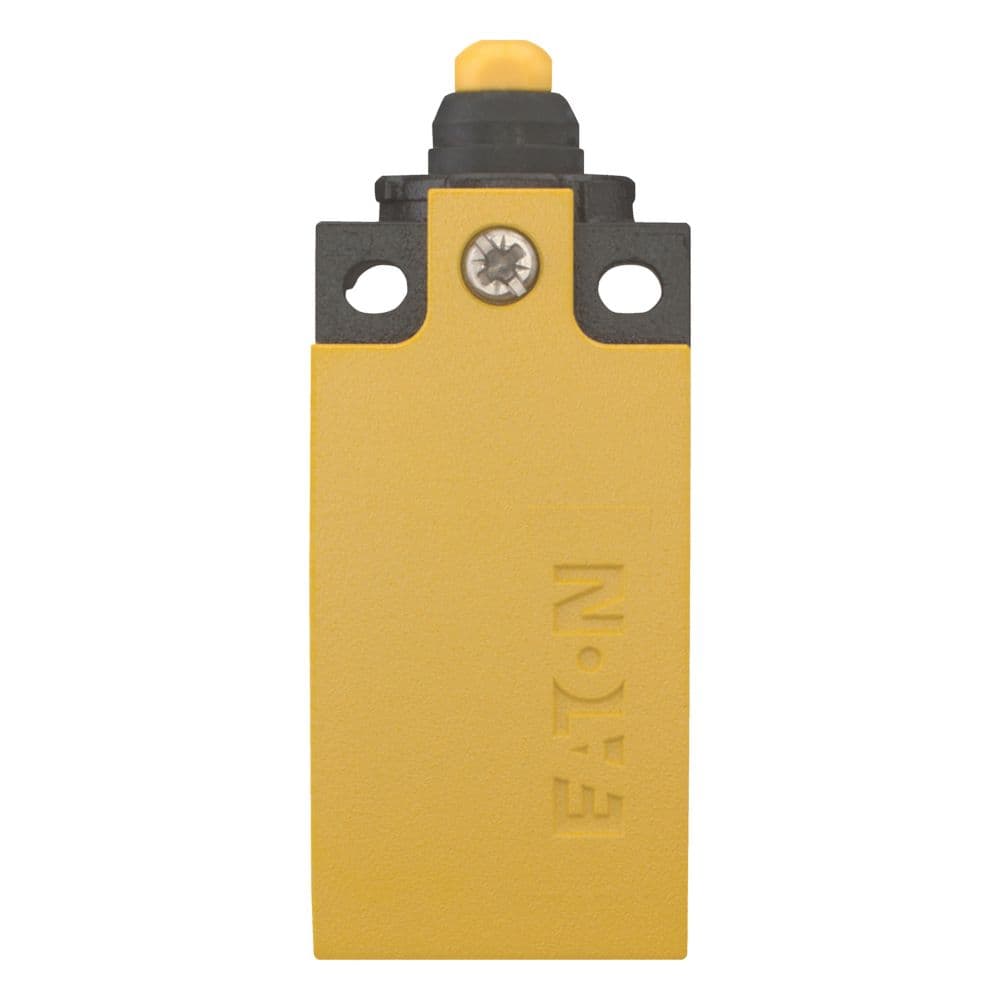

Eaton Moeller® series LSM Safety position switch

Eaton

Eaton Moeller® series LSM Safety position switch

رقم القطعة: 266142

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series LSM Safety position switch

المواصفات

Product NameEaton Moeller® series LSM Safety position switch
Catalog Number266142
Model CodeLSM-02
EAN4015082661427
Product Length/Depth33.5 mm
Product Height76.5 mm
Product Width31 mm
Product Weight0.147 kg
CompliancesCE Marked
CertificationsEN 60947-5 UL 508 CSA Std. C22.2 No. 14 IEC 60947-5 UL File No.: E29184 IEC/EN 60947-5 IEC/EN 60947 CSA File No.: 012528 UL Category Control No.: NKCR CE CSA-C22.2 No. 14 UL CSA Class No.: 3211-03 CSA
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266142.html
Catalog NotesUsing the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.
Actuator typePlunger
Actuating force at beginning/end of stroke1.0 N/8.0 N
Actuating torque of rotary drives0.2 Nm
Operating speedMax. 1/0.5 m/s (with DIN cam, mechanical actuation) For angle of actuation α = 0°/30°
