Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 266203

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

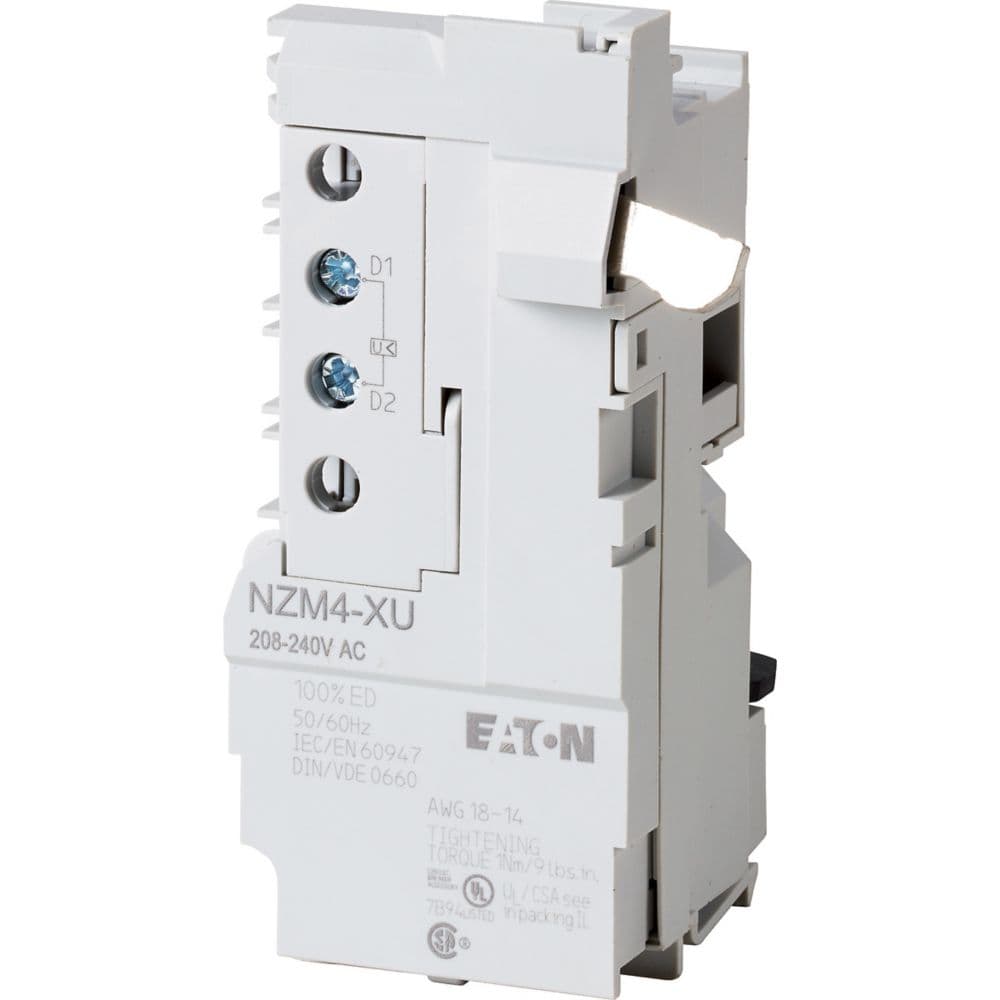

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresNon-delayed disconnection of NZM circuit-breaker or N switch-disconnector when the control voltage sinks below 35 – 70% US.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Undervoltage releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XA... shunt release.
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number266203
Model CodeNZM4-XU12DC
EAN4015082662035
Product Length/Depth107 mm
Product Height51 mm
Product Width64 mm
Product Weight0.218 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL489 UL listed UL (Category Control Number DIHS) CE marking IEC60947 UL (File No. E140305) CSA-C22.2 No. 5-09 CSA (Class No. 1437-01) CSA (File No. 22086) CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266203.html
Suitable forOff-load switch
Used withNZM4(-4), N(S)4(-4)
TypeUndervoltage release
FrameNZM4
