Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 266258

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

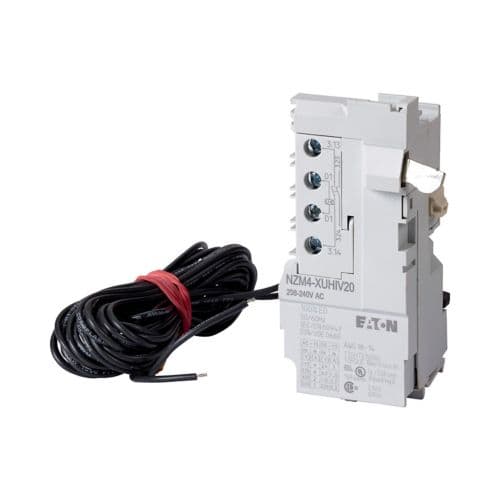

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresUndervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Early-make of auxiliary contacts on switching on (manual operation): approx. 90 ms.Cannot be used in conjunction with NZM...-XR... remote operator.
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number266258
Model CodeNZM4-XUHIV2024DC
EAN4015082662585
Product Length/Depth107 mm
Product Height51 mm
Product Width64 mm
Product Weight0.24 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsUL (File No. E140305) CSA (File No. 22086) CE marking UL (Category Control Number DIHS) UL489 IEC60947 CSA-C22.2 No. 5-09 CSA certified CSA (Class No. 1437-01) UL listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266258.html
Suitable forOff-load switch
Used withNZM4(-4), N(S)4(-4)
TypeUndervoltage release with early-make auxiliary contact
Fitted with:Two separate early-make auxiliary contacts
FrameNZM4
