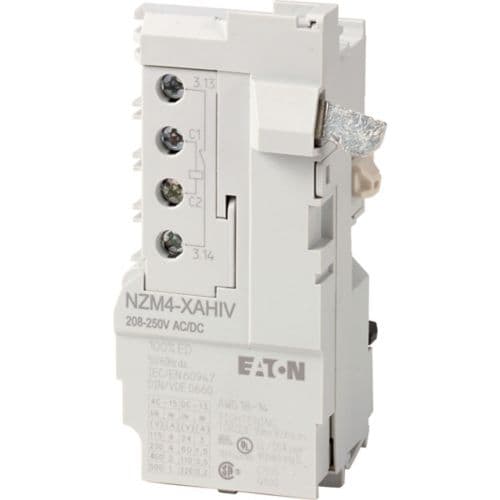

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 266470

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresCannot be used in conjunction with NZM...-XR... remote operator. If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on. Early make of auxiliary contact on switching on (manual operation): approx. 90 ms. Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product NameEaton Moeller series NZM Shunt release
Catalog Number266470
Model CodeNZM4-XAHIV12AC/DC
EAN4015082664701
Product Length/Depth107 mm
Product Height51 mm
Product Width64 mm
Product Weight0.24 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsIEC60947 UL489 CSA (Class No. 1437-01) CSA (File No. 22086) CE marking CSA-C22.2 No. 5-09 CSA certified UL listed UL (File No. E140305) UL (Category Control Number DIHS)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266470.html
Suitable forOff-load switch
Used withNZM4(-4), N(S)4(-4)
TypeAccessory Shunt release
Fitted with:Early-make auxiliary contact
FrameNZM4
