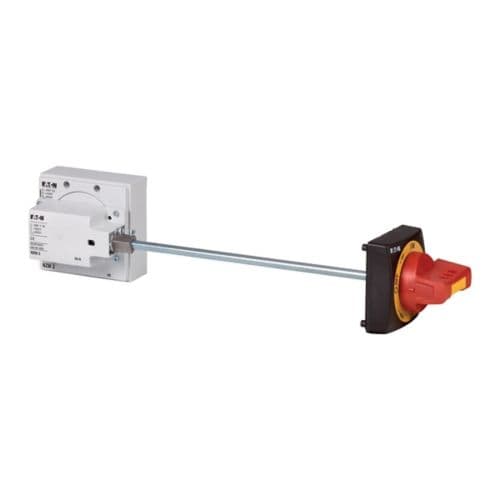

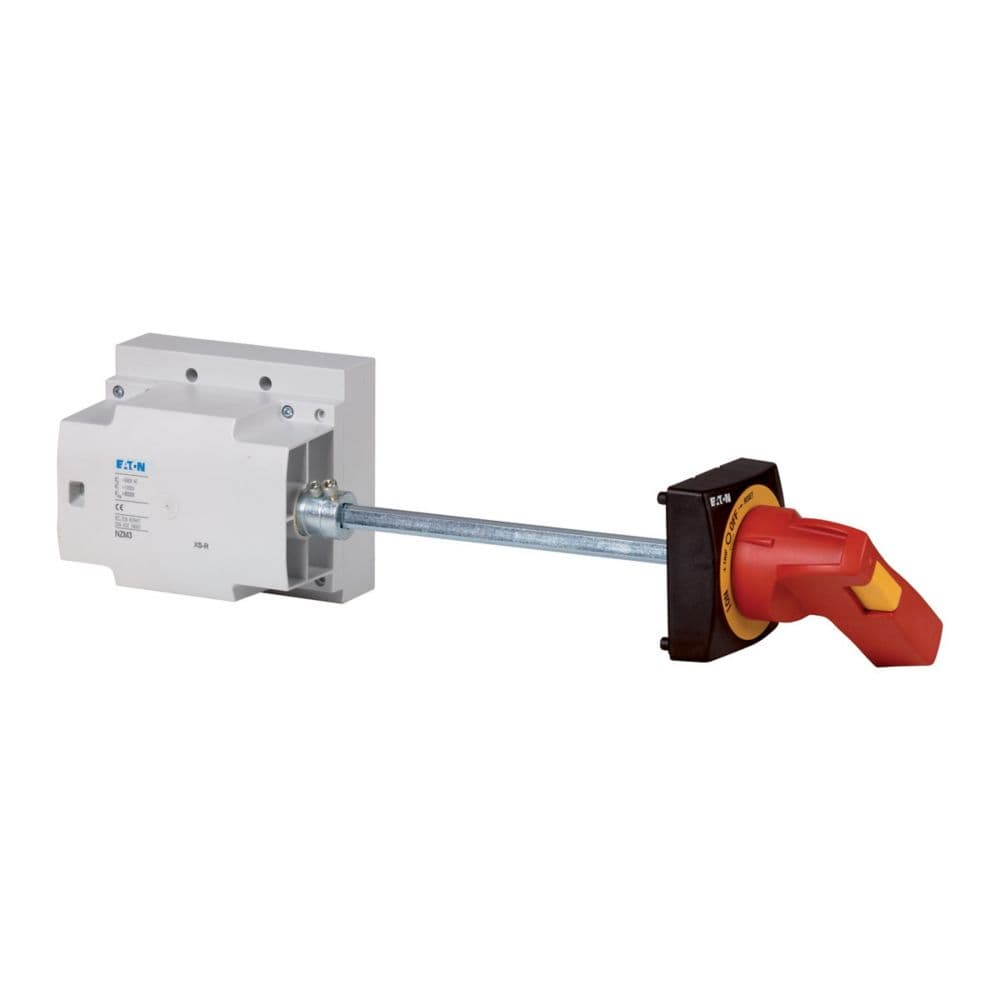

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266658

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresExternal warning plate/designation label can be clipped on.For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.Kit for use as a main switch
Product NameEaton Moeller series NZM operating element
Catalog Number266658
Model CodeNZM3-XSR-R
EAN4015082666583
Product Length/Depth240 mm
Product Height120 mm
Product Width150 mm
Product Weight2.227 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsUL (File No. E140305) CSA (File No. 22086) CSA (Class No. 1437-01) CSA certified IEC60947 UL listed UL (Category Control Number DIHS) CE marking UL489 CSA-C22.2 No. 5-09
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266658.html
Suitable forSwitch disconnector Emergency stop Power circuit breaker
Used withNZM3(-4) N(S)3(-4) PN3(-4)
FeaturesSwitch mounting on mounting plate Red-yellow for emergency switching off Lockable Actuation of the switch on the control panel side wall
TypeMain switch assembly kit for side panel mounting
Fitted with:NZM...-XV4 extension shaft Black and yellow lightning symbol Door coupling rotary handle External warning plate/marking plate in German/English Padlock
FrameNZM3
